Waveshare sells everything from bare e-paper panels and driver boards to all-in-one boards with built-in ESP32s. This versatility is why makers return to the brand.
When searching for a Waveshare Electronics alternative, the choice comes down to system integration: how much hardware assembly you want to handle yourself, and whether you need a single display for one project or a long-term supplier.
E-paper displays are a great example of this difference. These screens reflect ambient light rather than emitting it, and many hold text and images indefinitely without power. This low power draw makes battery-powered setups practical.
When an alternative might be the better choice
You want fewer components
Starting with a raw panel often means building a stack: display, driver board, microcontroller, battery circuit, power management, and libraries. Each connection is a potential point of failure.
An integrated board reduces this complexity. The Inkplate 10 is a 9.7-inch e-paper display with 1200x825 resolution, powered by an onboard ESP32. It runs on USB or Li-ion power with integrated charging circuitry.
You want faster prototyping
Less wiring means less troubleshooting. With the Inkplate 6FLICK, you can go from unboxing to displaying content in minutes using USB-C and the Arduino IDE.
MicroPython is supported. The library includes a hello_world.py example for the Inkplate 10, alongside scripts for Wi-Fi, HTTP requests, SD cards, and RTC functionality.
You want battery-powered devices
Dedicated power management cuts current draw. The Inkplate 10 consumes 22 µA in deep sleep, while the Inkplate 13SPECTRA draws 14 µA. Combining an unpowered persistent image with microamp-level sleep creates a device that charges occasionally instead of daily.
You want beginner-friendly hardware
Clear guides and software support matter as much as hardware specs. Soldered provides quick-start guides and code examples for active Inkplate models, plus a feature overview to select the right board.
Top Waveshare electronics alternatives
Soldered: the all-in-one e-paper platform

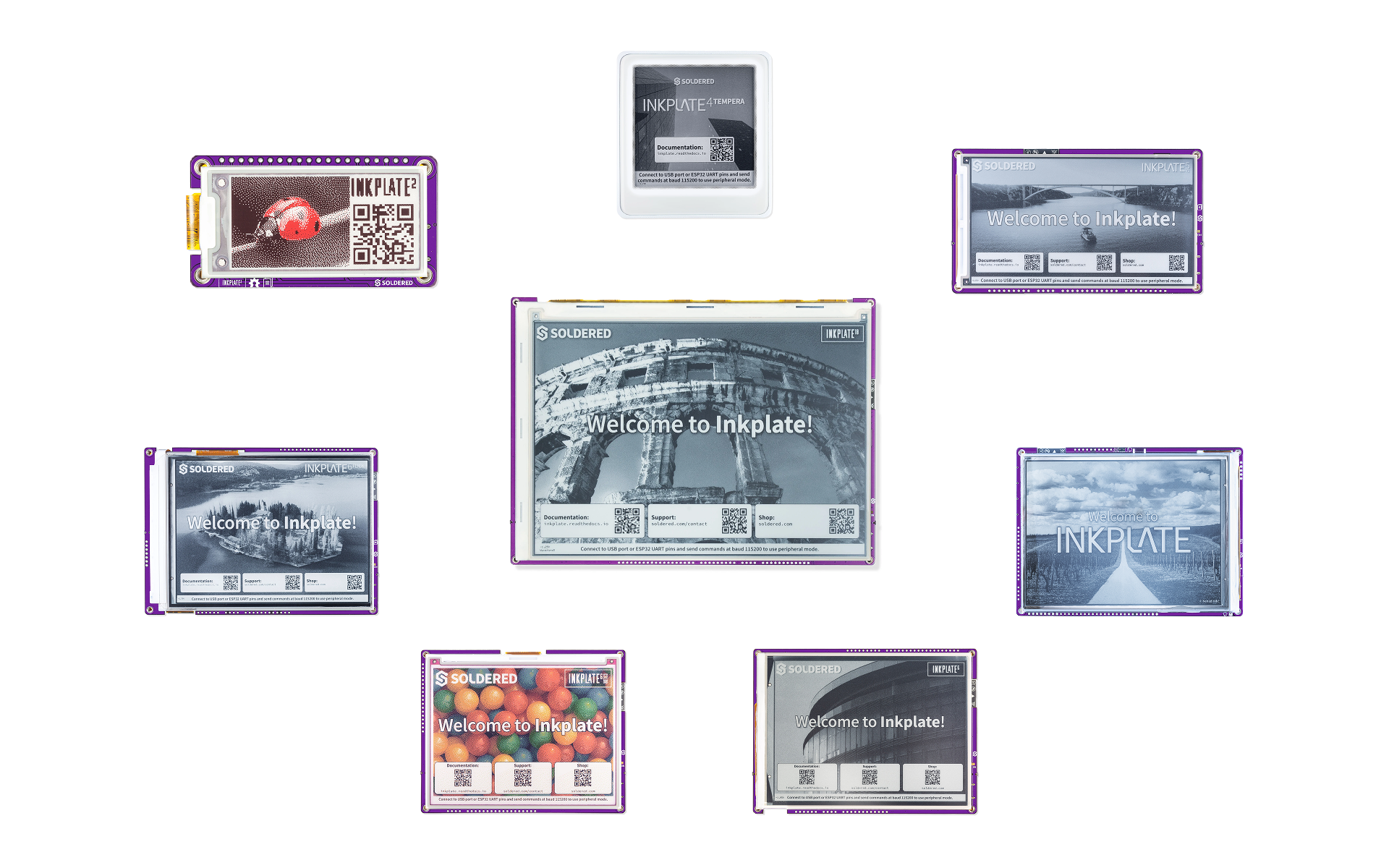

The Inkplate series consists of Wi-Fi-enabled development boards built around specific e-paper displays. Each board is designed from the ground up around its screen.
Three models cover most project requirements:
A 9.7-inch grayscale panel with a 1.61-second full refresh and partial update support. It fits desktop and wall dashboards well.
A 6.0-inch model with 1024x758 resolution for interactive projects. It includes two-point touch sensing and a frontlight with 64-step dimming.
A 13.3-inch color e-paper board featuring 1600x1200 resolution and six-color support. Driven by an ESP32-S3 with 32 MB flash and 16 MB PSRAM, it refreshes full-screen color in 19 seconds for periodic display updates. This matches large-format Waveshare color displays.
Both hardware and software are fully open-source.
Raspberry Pi official ecosystem
Choose this path when your project requires Linux rather than a microcontroller. The Raspberry Pi 5, built on a Broadcom BCM2712 quad-core Cortex-A76 processor, provides Linux computing while maintaining the 40-pin GPIO header for HAT compatibility.
Official hardware expansion covers AI tasks. The AI HAT+ uses Hailo accelerators in 13 and 26 TOPS variants, while the AI Camera handles on-board inferencing via a 12-megapixel sensor.
You can pair a Raspberry Pi with a Waveshare e-paper HAT, though maintaining a Linux OS requires a different approach than running a microcontroller sleeping at 22 µA.
Adafruit
Adafruit focuses primarily on electronics education. Founded in 2005, the company targets accessible hardware, documentation, and learning resources.
This shows in CircuitPython, Adafruit's MicroPython fork released in 2017. Built for fast feedback without desktop toolchain installation, it includes a library of over 500 Python modules.
The Feather ecosystem, launched in 2015, contains over 100 boards and modular add-ons for modular design upgrades. Many Adafruit products are manufactured in their New York facility.
For e-paper projects, Adafruit requires assembling systems from separate components rather than using integrated display boards.
SparkFun
SparkFun focuses on sensors, educational hardware, and the Qwiic connector standard. This 4-pin JST connector handles I2C communication without soldering. Keyed connectors prevent flipped lines, and most boards support daisy-chaining.
System limits to plan around: Qwiic runs at 3.3V, and I2C traces drop reliability past roughly one meter.
Inkplate hardware links directly to this setup; the 13SPECTRA includes three Qwiic ports to attach SparkFun sensors directly without wiring adapters.
Seeed Studio
Seeed Studio manufactures modular components built around the Grove prototyping standard. Grove setups connect base boards and sensor modules using uniform 4-wire cables.
The catalog includes UART serial modules, network hardware, and environmental sensors for rapid breadboard-free assembly.
Grove uses a distinct connector format from Qwiic, requiring matching cables for your targeted base board.
Soldered Inkplate vs. Waveshare
Choosing between Waveshare and Inkplate comes down to selecting raw modular components or an integrated system. Waveshare provides standalone panels and driver boards, while Inkplate supplies complete e-paper development platforms.
| Feature | Inkplate | Waveshare Panel + Driver Board |
|---|---|---|
| Integrated ESP32 | Yes | No |
| Battery Support | Yes | No |
| Power Management | Yes | No |
| Arduino Libraries | Yes | Yes |
| MicroPython | Yes | Limited, project dependent |
| Raw Display Flexibility | No | Yes |
| Beginner Friendly | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| Best for Dashboards | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
The "Waveshare" column in this table covers a raw panel and driver board wired to a separate microcontroller, which lacks the integrated ESP32, battery circuit, and power management of an Inkplate.
Waveshare also sells standalone e-paper development boards with onboard ESP32-S3 or ESP32-C6 microcontrollers, a 13.3-inch color display bundle with an ESP32-S3 driver board, battery-supported units, and a 7.5-inch passive NFC screen. Choosing an integrated Waveshare product changes these feature comparisons, so review specific board schematics before buying.
The Inkplate specification remains identical across models: integrated ESP32, USB or Li-ion battery power with integrated charger, 22 µA sleep current, and dual Arduino/MicroPython support.
Waveshare provides broader display panel flexibility, covering sizes from 1.54 inches up to 13.3 inches alongside Raspberry Pi HAT+ hardware. Inkplate focuses on all-in-one finished units.
The underlying glass panels are frequently identical. Waveshare's 13.3-inch full-color panel and the Inkplate 13SPECTRA both use E Ink Spectra 6 technology; the difference lies in the driving circuitry surrounding the glass.
Why many makers eventually move beyond raw display modules
Starting with a raw display panel requires wiring an ESP32, adding a voltage regulator, designing battery charge circuits, and debugging hardware connections. This process highlights system bottlenecks quickly. Which often stem from board power management rather than the display glass.
When you need a finished status display or desk clock, an integrated platform removes the hardware integration step. Boards like the Inkplate 6FLICK supply ready-to-run code examples and documentation out of the box.
Why Soldered is a great alternative for e-paper projects
Inkplate hardware integrates an onboard ESP32, Wi-Fi, Bluetooth, Li-ion charging circuits, and microamp deep sleep power management into a single board.
Software support includes Arduino, MicroPython, ESP-IDF, and LVGL (on the 13SPECTRA). Open-source schematics, code examples, and dedicated quick-start guides are available for all models.
Home Assistant integration runs via ESPHome across the Inkplate 5, 6, 10, and 6 Plus models. ESPHome devices auto-discover on local networks without requiring external cloud access.
This hardware integration fits wall calendars, status panels, and room dashboards that require integrated power management, wireless radios, and displays on a single PCB.
FAQ
What is the best Waveshare Electronics alternative?
For an integrated e-paper solution with built-in power management and microcontrollers, Inkplate works best. For Linux setups using HAT extensions, select Raspberry Pi. For beginners learning embedded software with CircuitPython, Adafruit provides the clearest path. For modular sensor arrays, use SparkFun Qwiic or Seeed Studio Grove systems.
Is Inkplate better than Waveshare?
Inkplate integrates an ESP32, battery charger, and software libraries on one display PCB. Waveshare offers a wider range of bare panels, alongside select integrated ESP32 driver boards. Selection depends on whether you want a finished board or separate components.
What is the difference between Inkplate and Waveshare?
Waveshare operates as a wide electronics supplier selling individual display glass, driver boards, and modules. Inkplate is a development platform focused on Wi-Fi-enabled e-paper boards built around dedicated displays.
Which e-paper display is best for ESP32?
For fully integrated setups, Inkplate models feature onboard microcontrollers (ESP32 on the Inkplate 10, ESP32-S3 on the 13SPECTRA). If you already own a standalone ESP32, Waveshare driver boards connect directly via SPI.
Which e-paper platform is best for Home Assistant?
Options vary by assembly effort:
| Platform | Difficulty | Best for | Key advantage |
|---|---|---|---|
| TRMNL | Start here | A desk or fridge display with minimal setup | Ready-made hardware and a plugin marketplace |
| ESPHome on an ESP32 | More advanced | Full control over layout and live sensor data | Local Home Assistant integration with no cloud dependency |
| Inkplate with ESPHome | More advanced | Full control without wiring a panel yourself | ESPHome runs on every Inkplate, which already has the ESP32 and charger |
| OpenEPaperLink | Intermediate DIY | Covering a whole house with small displays | Affordable electronic shelf labels driven from one access point |
| Repurposed Kindle or Kobo | Intermediate hack | A large, high-resolution touch screen on a budget | Secondhand hardware, though it typically needs a wired supply |
TRMNL provides a pre-assembled display with low-power sleep built-in. ESPHome allows custom layouts rendered locally over YAML configurations.
Inkplate boards run ESPHome natively while eliminating manual display wiring. The firmware communicates directly with the integrated ESP32 and power circuitry.
Overall battery life depends on deep sleep software timing rather than display technology. ESP32 setups wake only to draw frames, utilizing low sleep currents like Inkplate's 22 µA. Electronic shelf labels achieve multi-year lifespans by running 802.15.4 low-power radios instead of Wi-Fi.
Are Waveshare displays beginner friendly?
Bare panels require configuring SPI pins, driver wiring, power supplies, and external microcontrollers separately.
Software setup in ESPHome requires pin mapping, managing full vs. partial screen refresh cycles, and setting signal inversion on busy pins to prevent panel damage. Integrated boards bypass these initial configuration steps.
Can you use MicroPython with Inkplate?
Yes. The Inkplate 10 supports Arduino and MicroPython natively, including sample code like hello_world.py in the repository.
Which e-paper display has a built-in ESP32?
All Inkplate models integrate microcontrollers (ESP32 with Wi-Fi/BLE on Inkplate 10 and 6FLICK; ESP32-S3 at 240 MHz on 13SPECTRA). Waveshare also sells dedicated e-paper boards powered by ESP32-S3 and ESP32-C6 chips.
