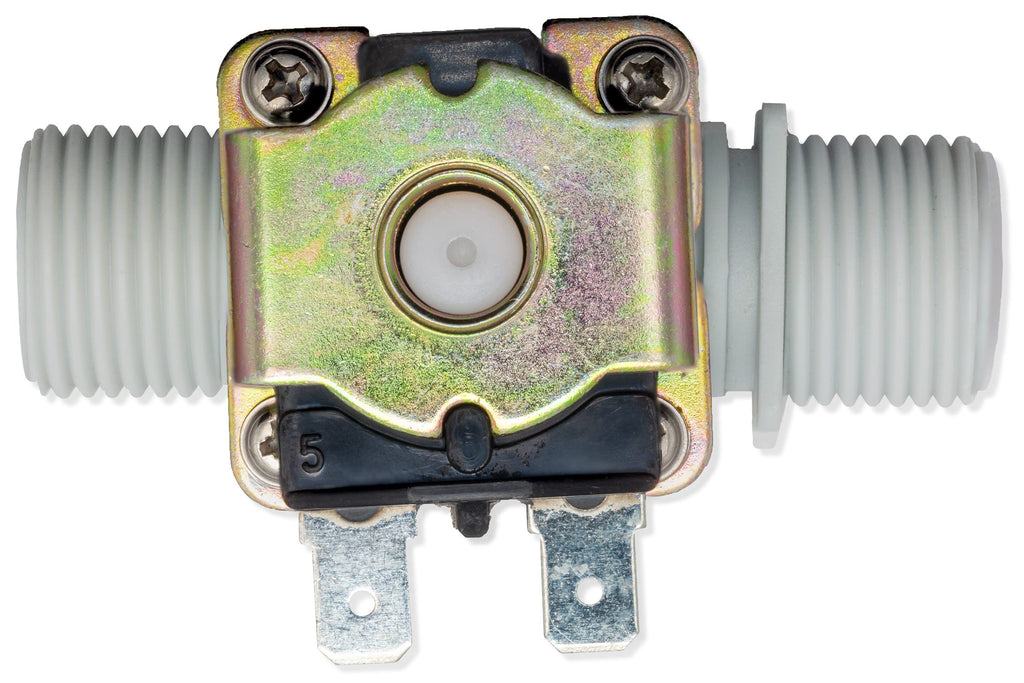

Electronic water valve 12V DC
SKU: 101655
€9,95

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

For the purpose of automation in working with plants, there is an electronic valve for the water (or other liquid?). If you need a way to control some fluid using a microcontroller, here it is! It is actually the electronic solenoid which when activated, the fluid passes through his pipe, and if not - will not. Accepts pipe diameter of1/2 and at the inlet has a filter for all the unwanted particles.



It does not contain the pump or even some additional electronics, so make sure to have an external pump or use faucet water with pressure which is large enough. Systems that have a reservoir at a higher altitude than the valve, or to be exact, that apply the principle of hydrostatic pressure will not work because the pressure will not be large enough.



• Voltage: 12V DC
• For pipes with a diameter of 1 / 2inch

• Dimensions: 78 x 60 mm
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Voltage: 12V DC
  • For pipes with a diameter of 1 / 2inch
  • Dimensions: 78 x 60 mm / 3.1" x 2.4"
