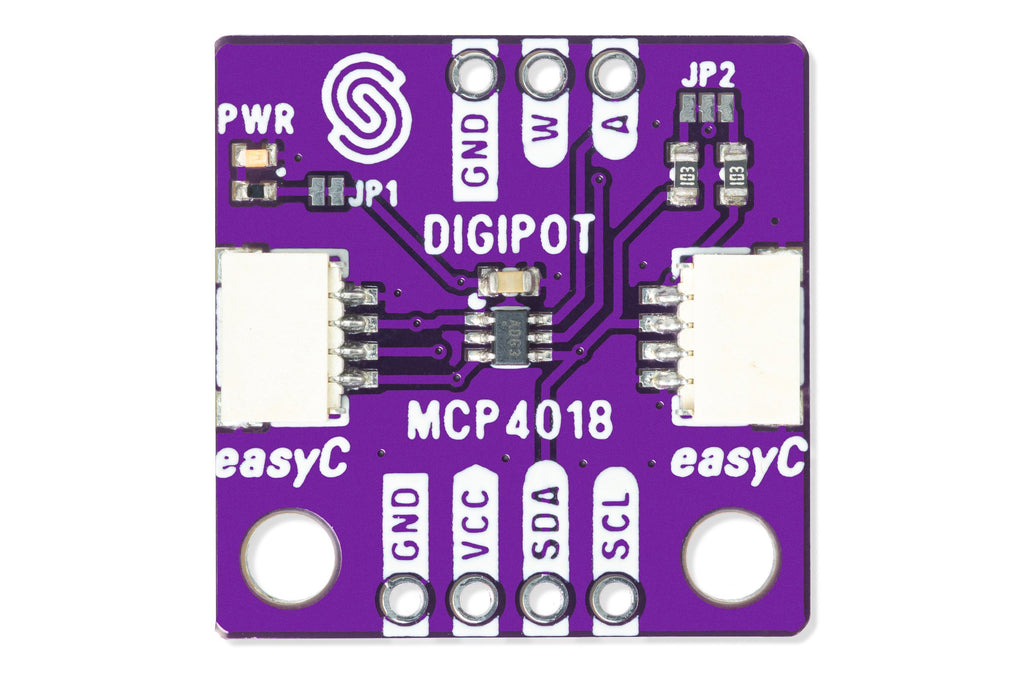

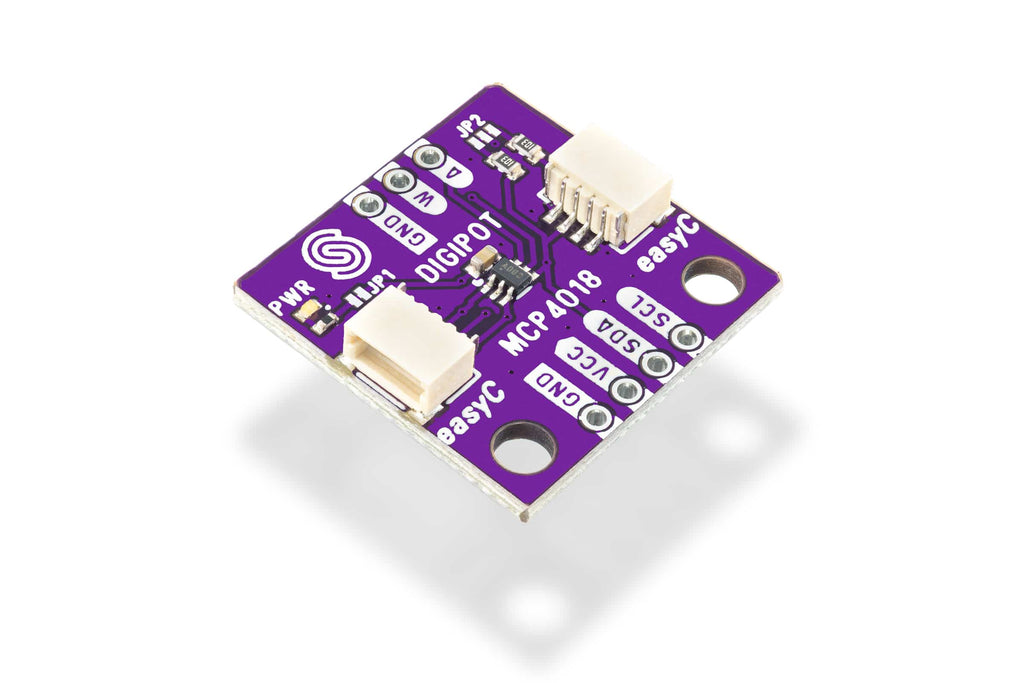

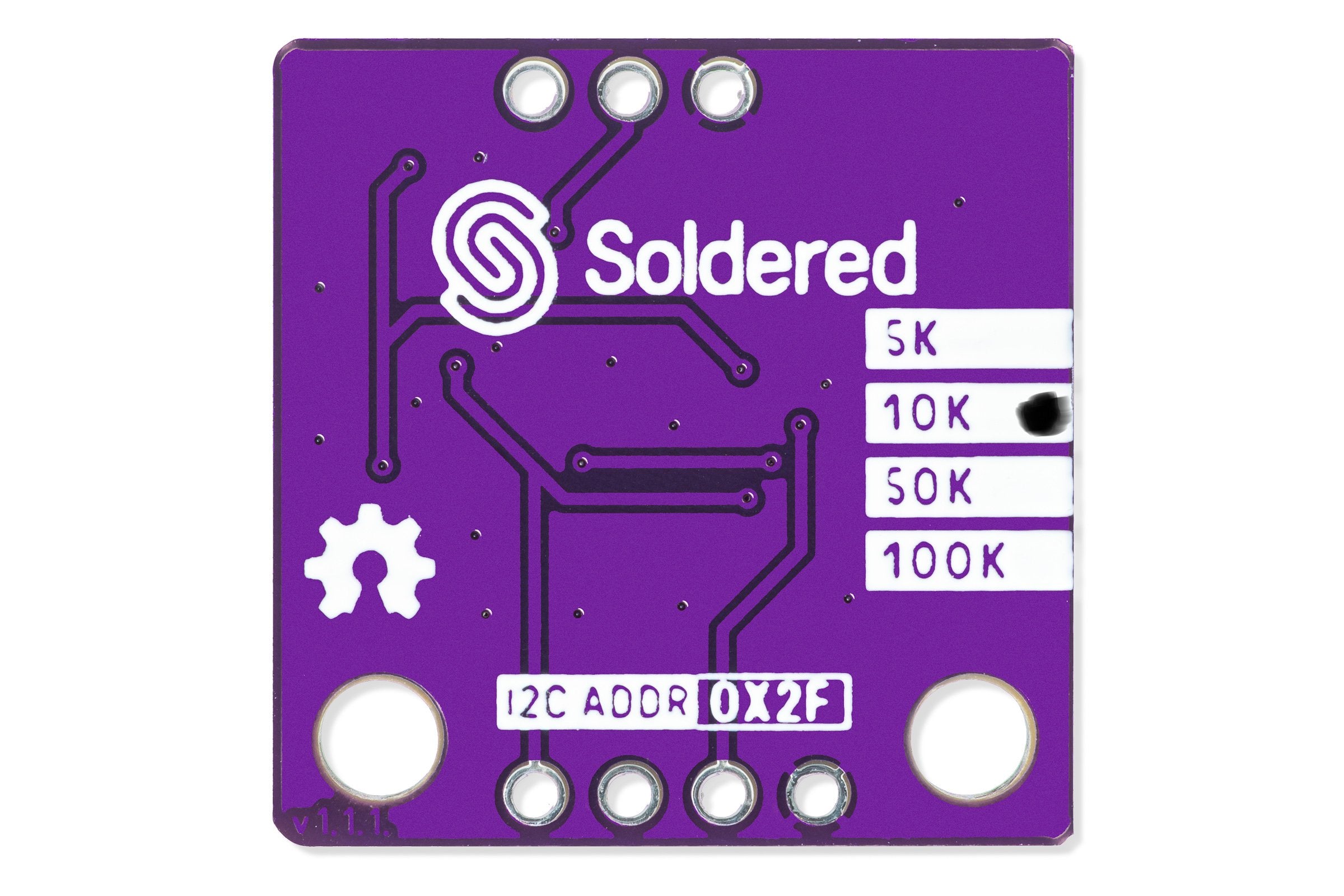

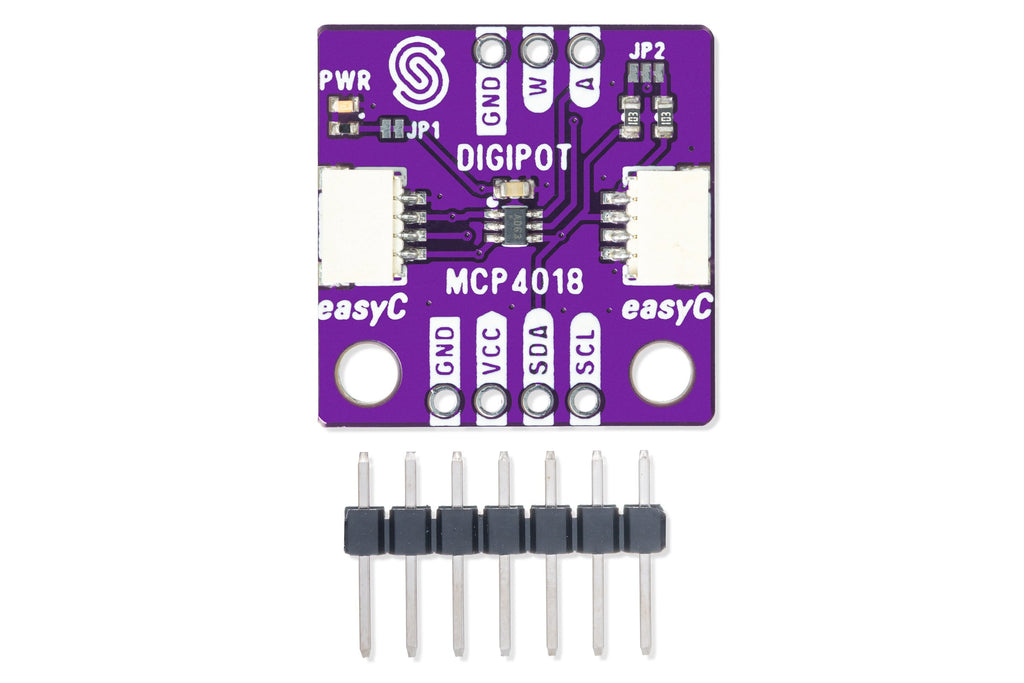

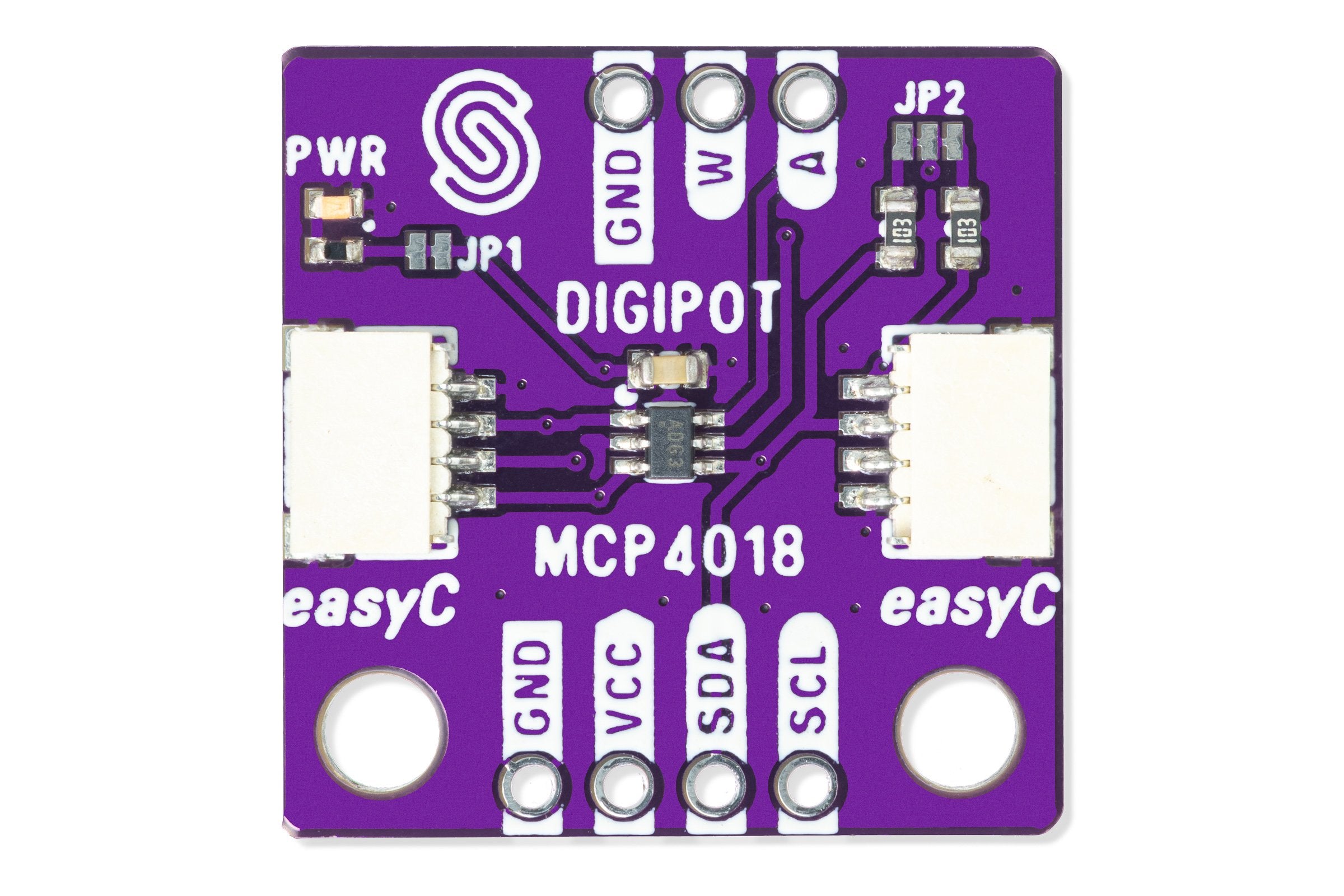

Digipot 10k MCP4018 breakout
SKU: 333091
€3,95

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

A digital potentiometer is a device identical to a potentiometer, except that instead of a physical rotating part that adjusts the resistance, it uses digital communication. Namely, the resistance of the digital potentiometer is adjusted via I2C communication.

Our module is based on the MCP4018 IC which has a total of 128 steps between 0 and 10k resistance values. This would mean that it is capable of doing resistance steps of approximately 78ohms. It is controlled via I2C which makes it extremely easy to use.
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Voltage: 1.8V - 5V
  • Potentiometer resistance: 10k
  • Wiper resistance: 100ohm
  • Dimensions: 22 x 22 mm / 0.9 x 0.9 inch

Resources & Documentation

DEVELOPMENT & RESOURCES

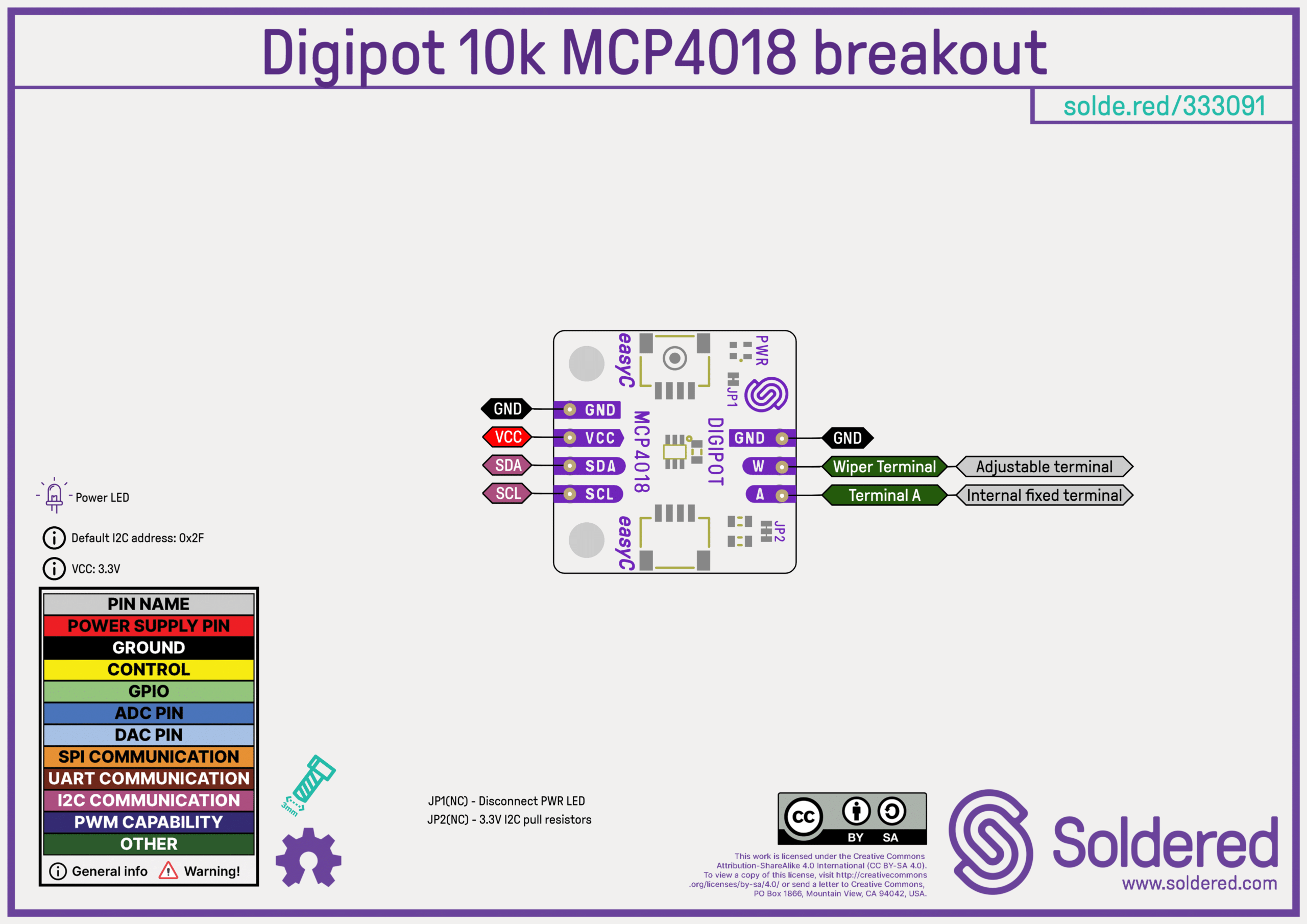

ARDUINO LIBRARY PINOUT DRAWING OPEN SOURCE HARDWARE FILES PRODUCT DATASHEET HARDWARE DETAILS ARDUINO LIBRARY DOCUMENTATION
CERTIFICATES & COMPLIANCE
CE CERTIFICATE UKCA CERTIFICATE
DOCUMENTATION & TUTORIALS
FULL PRODUCT DOCUMENTATION GETTING STARTED WITH ARDUINO
