Name: Inkplate 10
Rating: 4.50 (14 reviews)

Inkplate 10

€189,95

INKPLATE

Inkplate 10

SKU: 333241

€189,95

10+ items available

Volume Pricing

Quantity	Unit Price	Savings
100+ units	€172,86	9% off
10+ units	€180,46	5% off
1+ units	€189,95	—

Availability

📦

28 units in stock — ready to ship

We ship what's available. You cannot order more than current stock. Need larger quantities? Lead time for new stock is approximately 6 weeks. Contact us below if you need more.

Unit Price: €189,95

Total: €189,95

Need a larger order or custom quote? Contact us →

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Made in EU

Designed and manufactured in Croatia.

In-stock in EU warehouse

Ships from Croatia, fast EU delivery.

Volume discounts

Educational and OEM pricing on request.

2-year warranty

Standard EU 2-year warranty on all Soldered products.

Complimentary technical support

Our engineers answer your questions free of charge.

Arduino-compatible

Plug it into any Arduino board and start coding in minutes.

MicroPython-compatible

Drop the driver onto your MicroPython-ready board and run it, no compiling required.

Qwiic

Solderless Qwiic connector, chain it to any Qwiic board with a single cable.

LVGL Support

Compatible with the popular LVGL graphics library for smooth, flexible embedded interfaces — in both Arduino and ESP-IDF.

ESP-IDF Compatible

Programmable with ESP-IDF, Espressif's official framework, so you get direct access to FreeRTOS, the ESP32's peripheral drivers and its power management from your own code.

ESPHome Compatible

Works with ESPHome, so you can describe what the board does in a short YAML file and add it to Home Assistant without writing any firmware.

Description

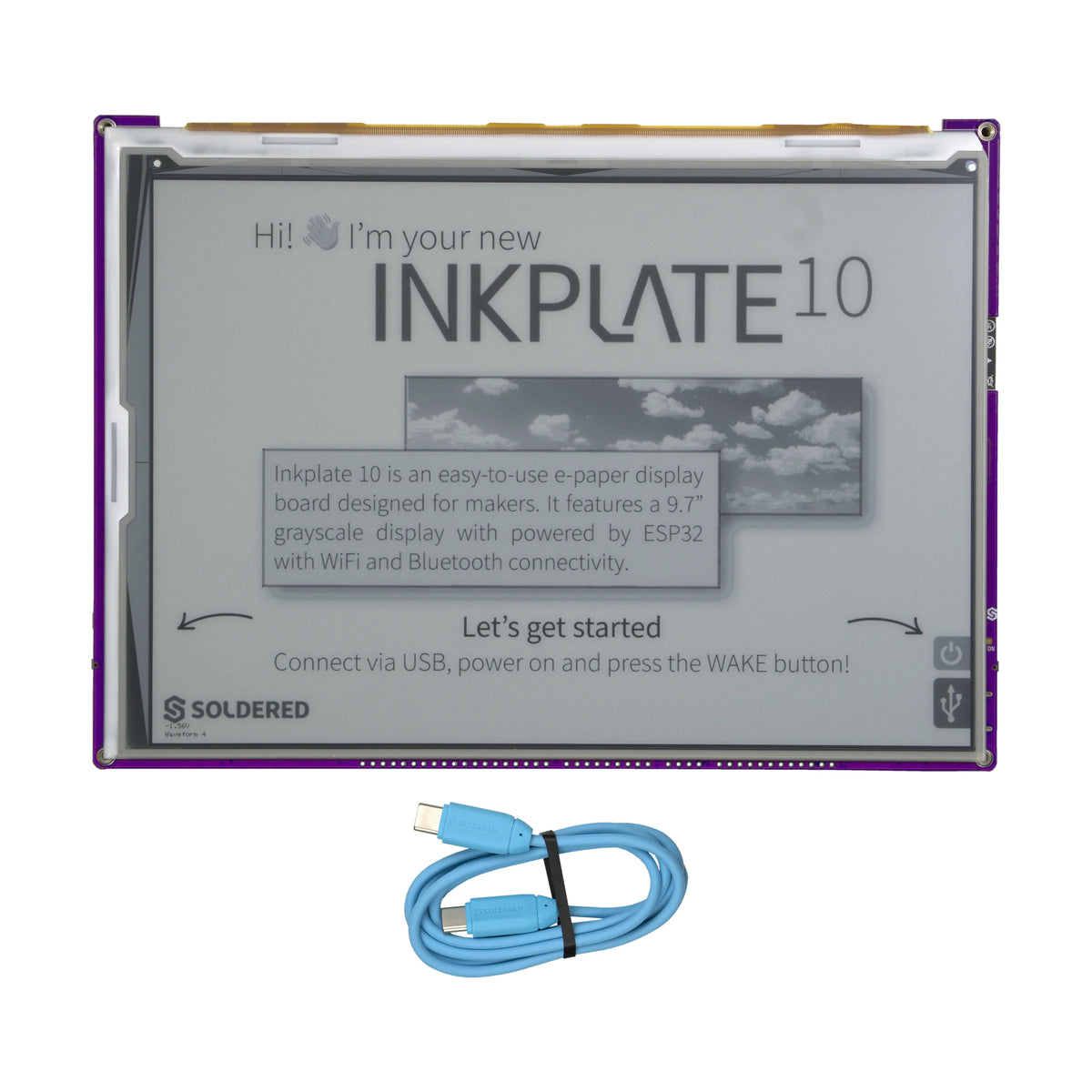

Transform your large-scale IoT projects with the Inkplate 10, a 9.7-inch grayscale e-Paper display boasting 1200 × 825 pixel resolution and ultra-low power consumption of just 22 µA in deep sleep mode. Powered by the versatile ESP32 microcontroller with Wi-Fi and Bluetooth 4.0 BLE, it delivers months of battery life from a single Li-Ion charge, thanks to the onboard charger and Real-Time Clock (RTC). Ideal for open-source photo frames, smart home dashboards, or weather displays, its fast 1.61s full refresh and quick partial update support ensure reliable performance.

Getting started is fast and easy with full support for Arduino (100% compatible with Adafruit GFX library) or MicroPython, allowing you to have your project up and running in a few minutes. Expand your setup with microSD card storage for images and data, plus additional available GPIO, I²C, SPI, and Qwiic/Qwiic-compatible connectors for seamless integration. Completely open-source hardware and software make customization straightforward for any application. Of course, you're not alone with our documentation and getting started guides.

Designed for high-performance embedded development, the Inkplate 10 fully supports Espressif's official ESP-IDF framework. This native environment grants developers low-level control over the hardware, enabling precise memory management, optimized display rendering routines, and custom power profiling to take full advantage of the board's ultra-low deep sleep capabilities. Whether building home prototypes or commercial-grade e-paper applications, ESP-IDF provides the robust foundation needed to unlock the full potential of Inkplate's wireless and processing features. A USB-C to USB-C cable is included in the package, so you can start using it right out of the box.

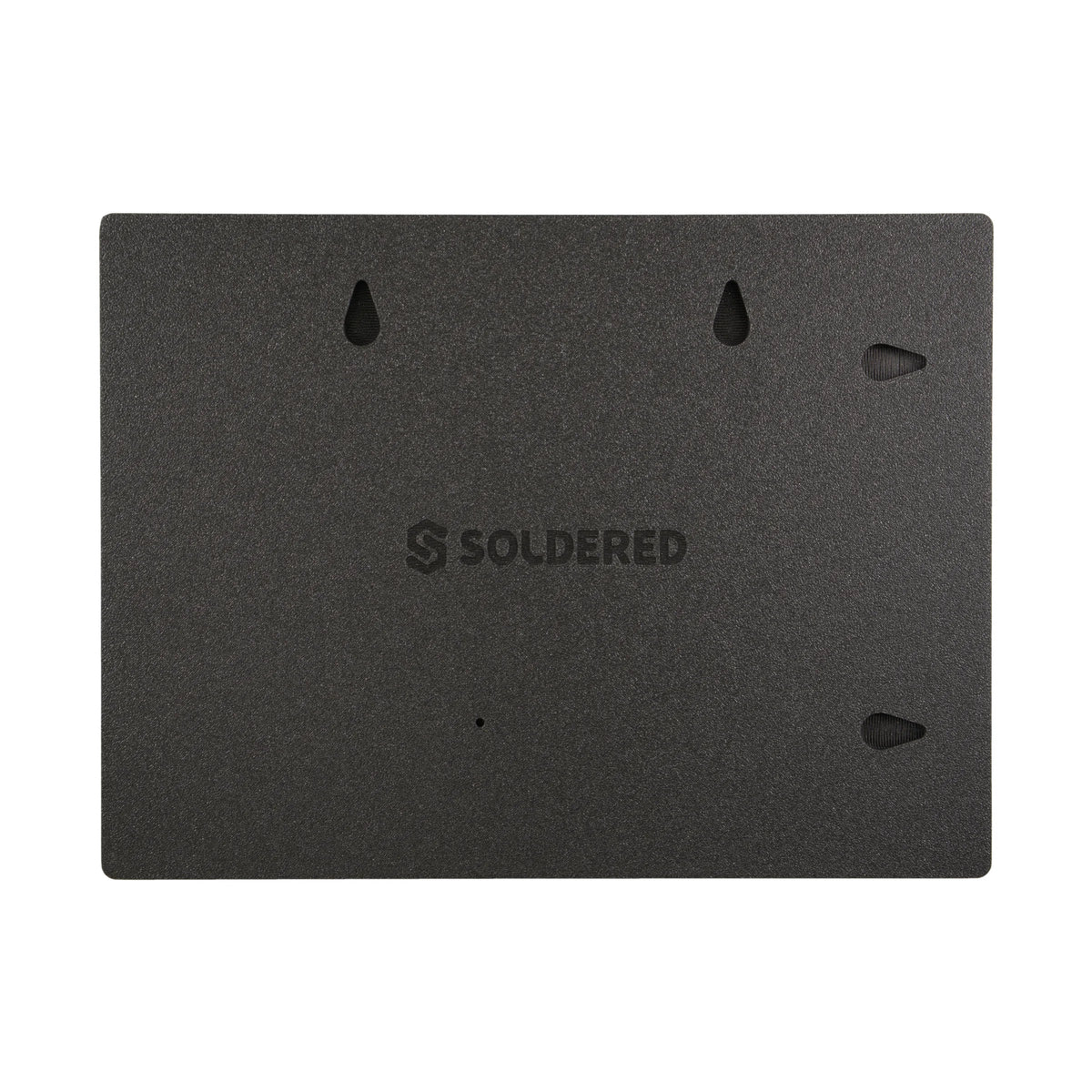

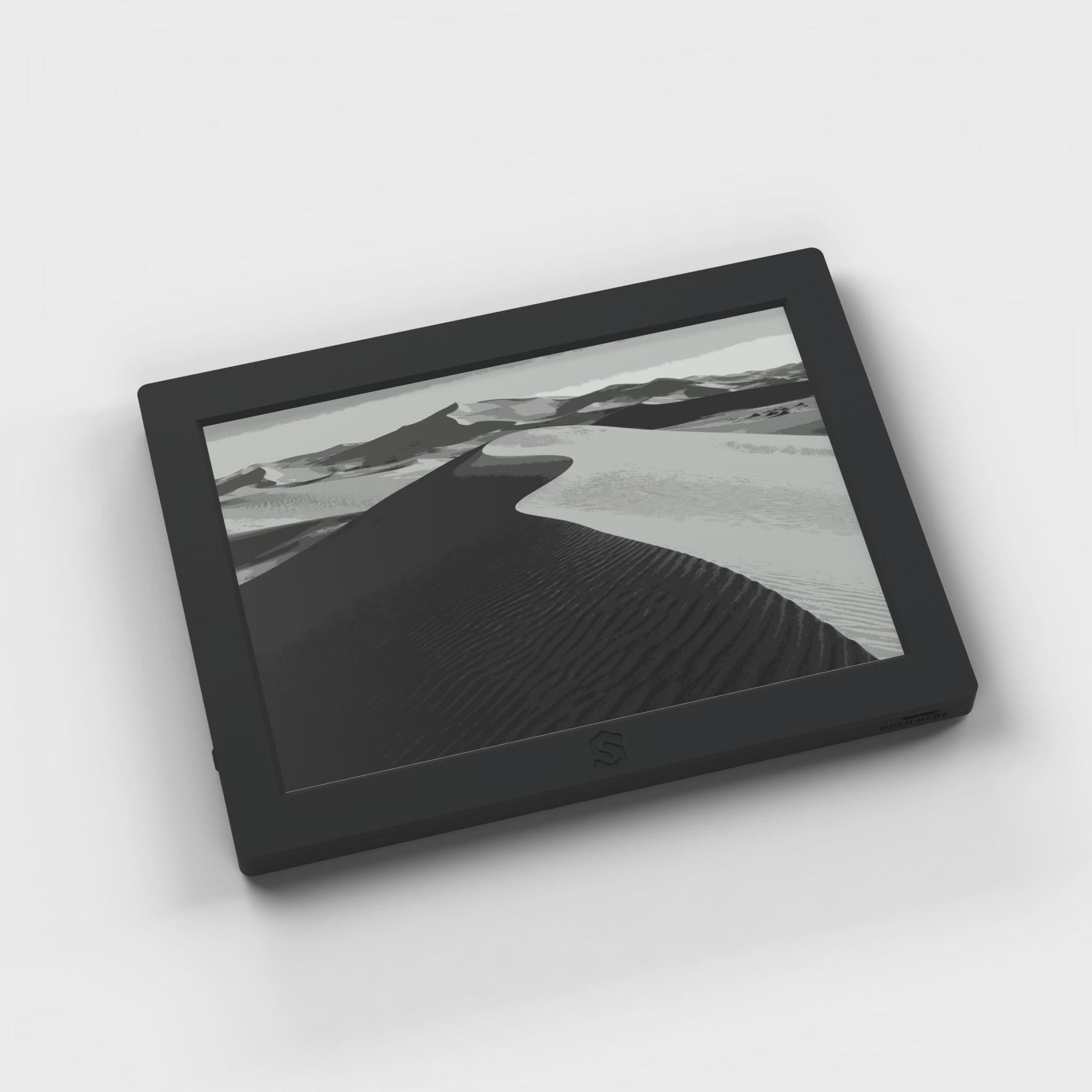

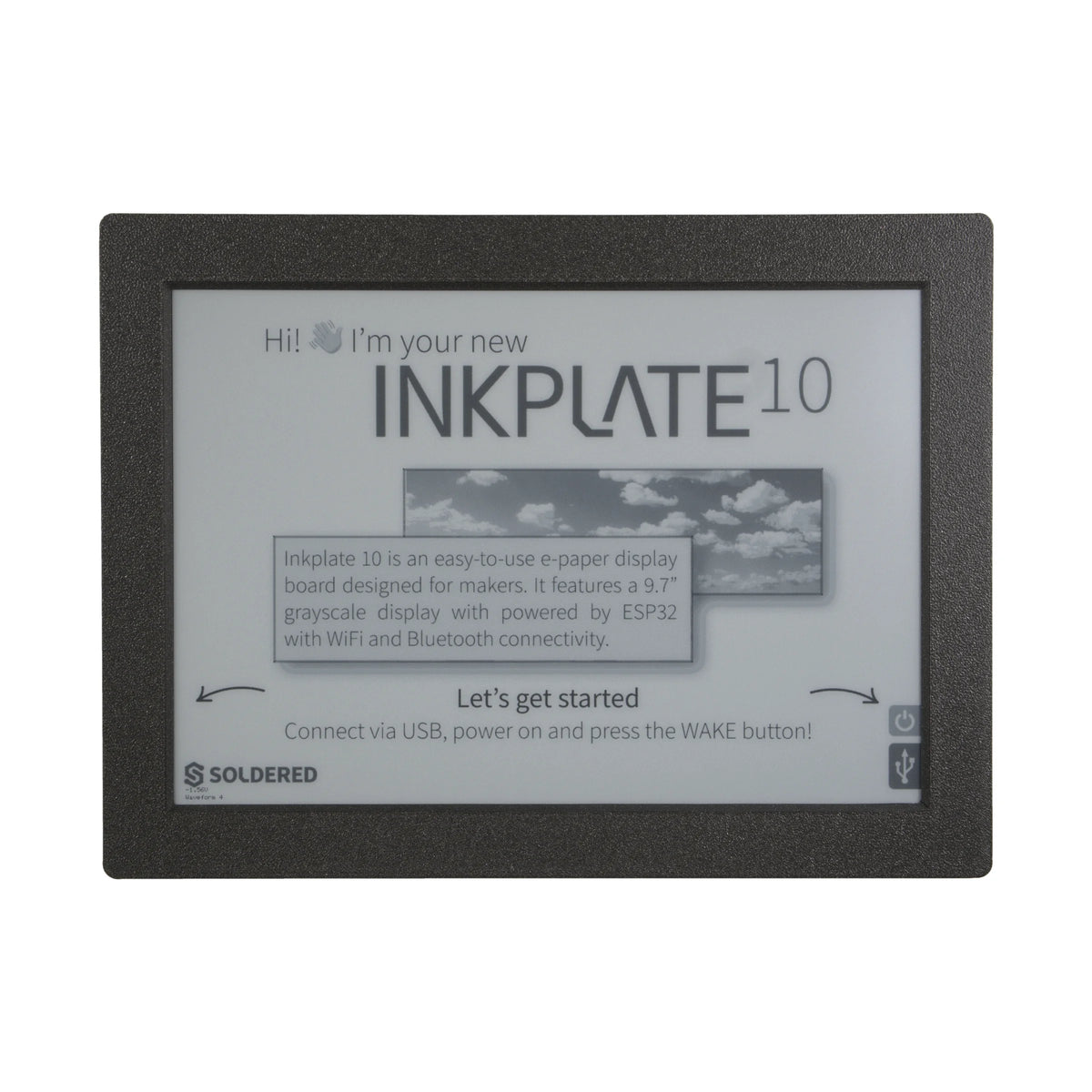

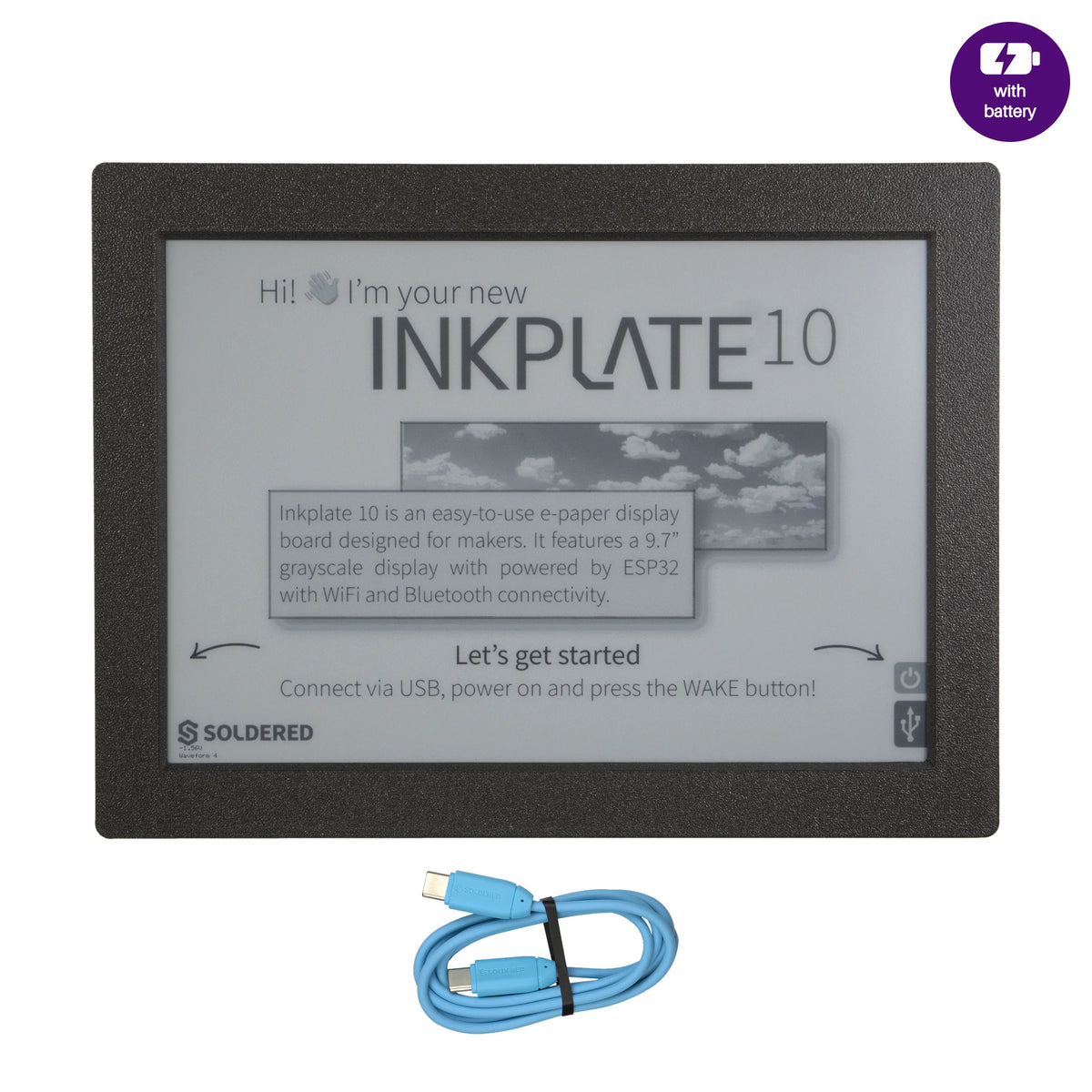

Choose from options: with e-Paper or with e-Paper enclosure and battery for portable power and a beautiful protective enclosure. Have your projects run for months, even a year on a single charge! The Inkplate 10 measures 224.3 × 163 × 10 mm without EPD or 240 × 179.5 × 13.5 mm with enclosure. It's an awesome choice to bring your e-Paper project to life, today!

Technical Specifications

Display Size: 9.7" e-paper (grayscale)
Resolution: 1200 × 825 pixels
Refresh Time: 1.61s (full), supports partial updates
Microcontroller: ESP32 (Wi-Fi + Bluetooth 4.0 BLE)
Power Supply: USB or Li-Ion battery (charger onboard)
Power Consumption: 22 µA in deep sleep mode
Programming Support: Arduino library, MicroPython
Storage: microSD card slot for image/data loading
Clock: Real-Time Clock (RTC) with battery holder

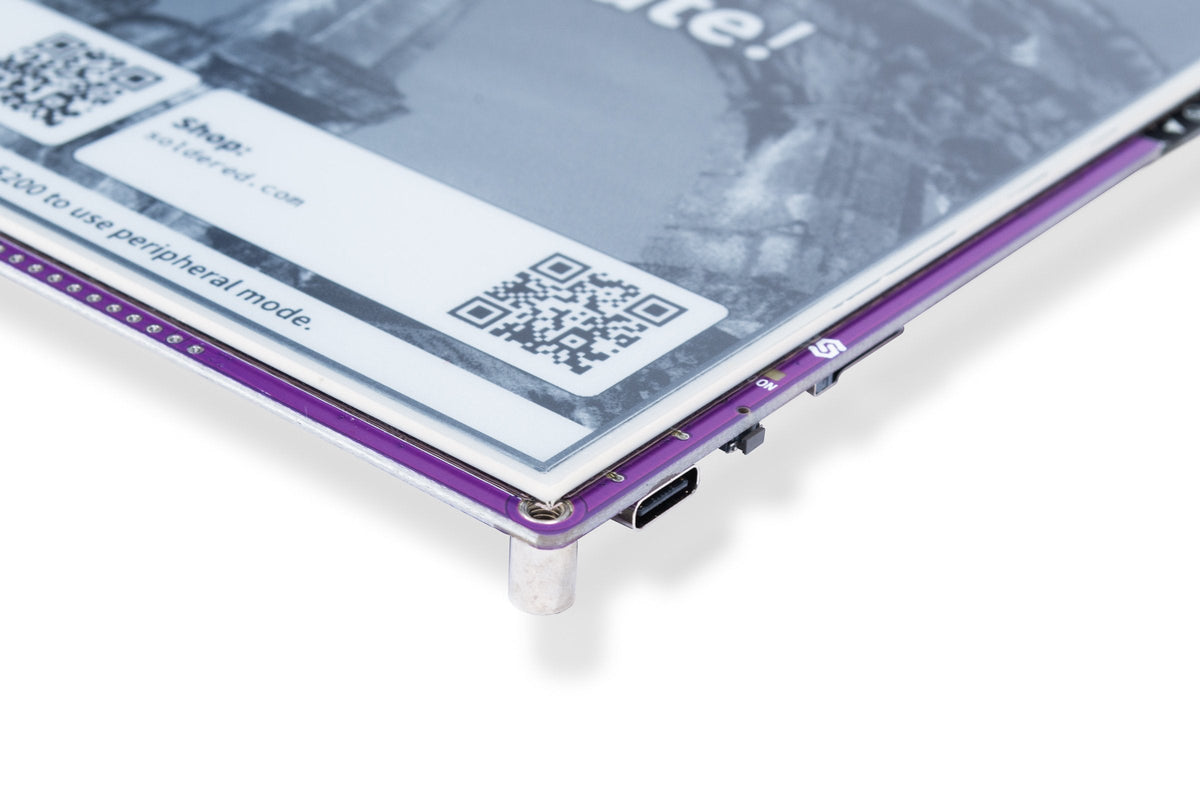

Expansion: GPIO, I²C, SPI, Qwiic/Qwiic-compatible
Open Source: Hardware and software
Dimensions (with e-Paper): 224.3 × 163 × 10 mm / 8.8 × 6.4 × 0.4 inch
Dimensions (with e-Paper, enclosure and battery): 240 × 179.5 × 13.5 mm / 9.4 × 7.1 × 0.5 inch

Resources & Documentation

DEVELOPMENT & RESOURCES

ARDUINO LIBRARY ARDUINO LIBRARY DOCUMENTATION MICROPYTHON MODULE OPEN SOURCE HARDWARE FILES

CERTIFICATES & COMPLIANCE

OSHWA CERTIFICATE

DOCUMENTATION & TUTORIALS

FULL PRODUCT DOCUMENTATION GETTING STARTED WITH ARDUINO HARDWARE DETAILS
