MakerICE Adapter SAM
contain
contain
contain
contain
SKU: 333215
€5,95

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

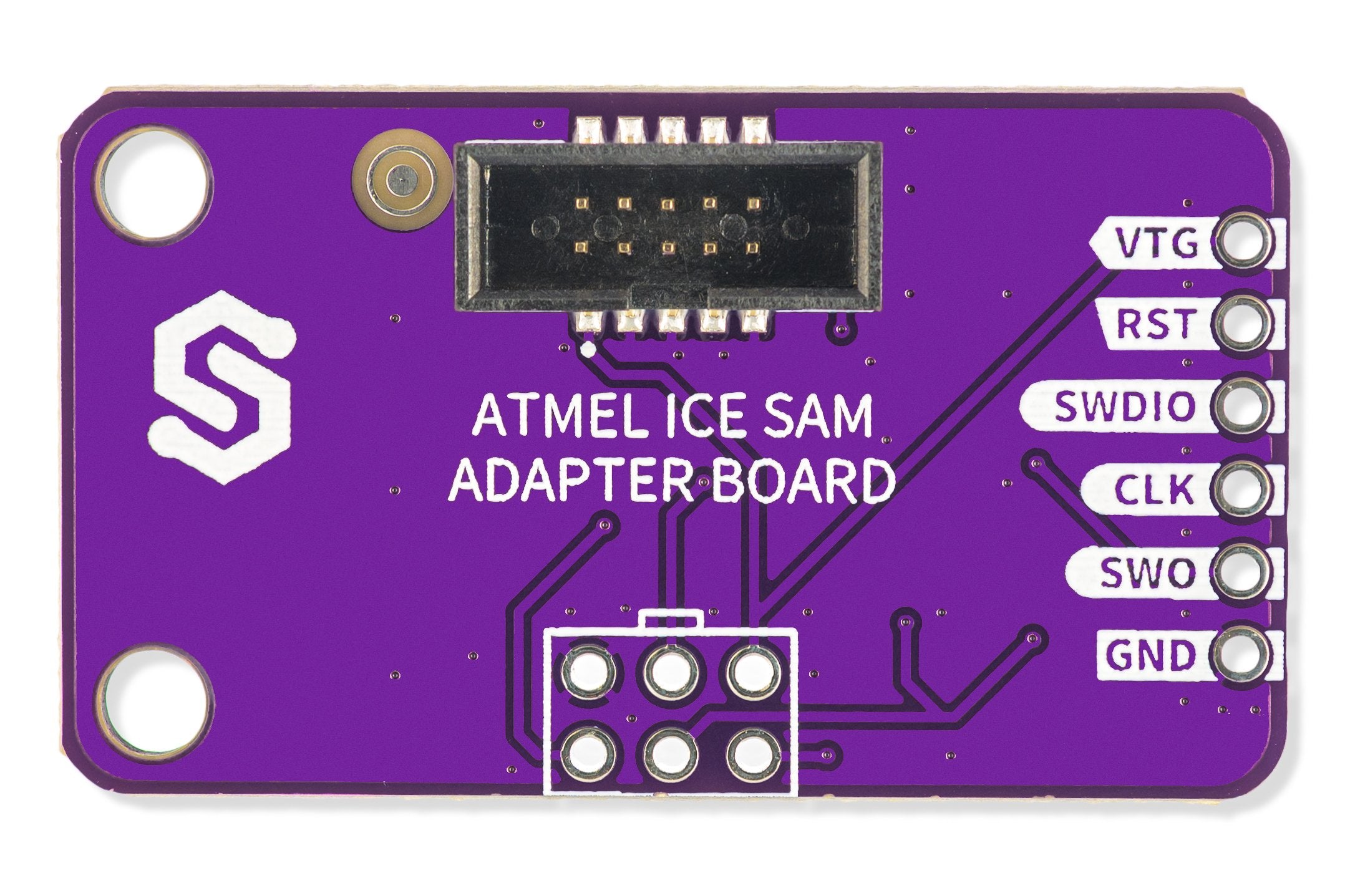

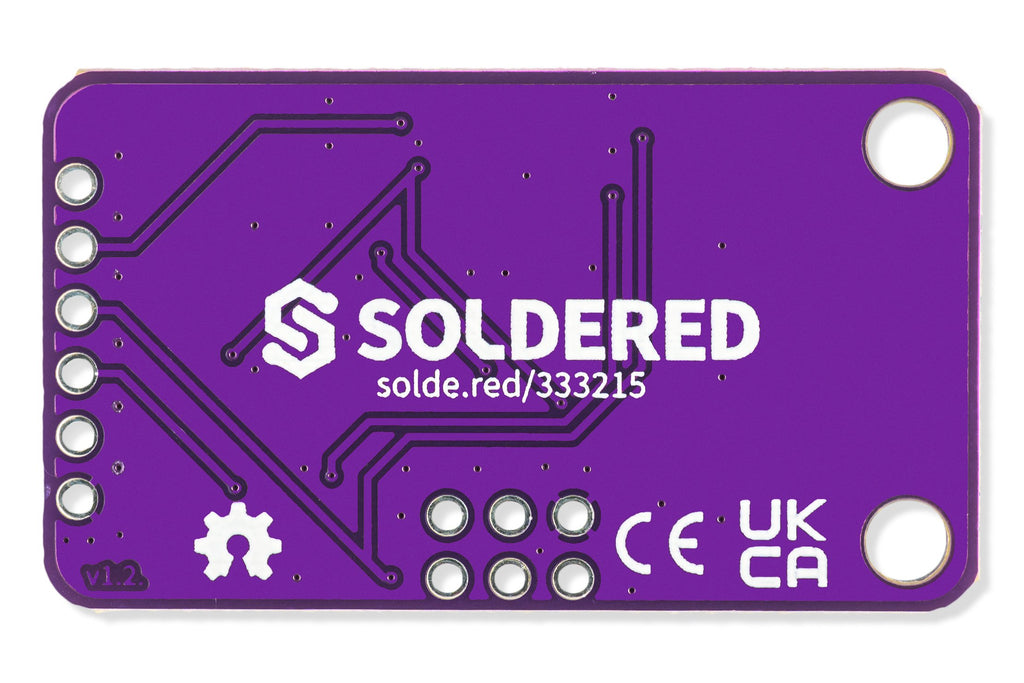

The MakerICE Adapter SAM is a compact, passive breakout board designed to connect the 10-pin ARM/SWD port of an Atmel ICE compatible programmer to a standard 6-pin SWD target header. It’s the simplest way to program and debug ARM-based SAM microcontrollers without messy jumper wires.

With direct signal routing for SWDIO, CLK, SWO, nRST, VTG, and GND, this adapter ensures reliable communication between your MakerICE SAM and any SWD-capable target. Ideal for engineers, educators, and advanced makers working with SAM devices, the board provides a stable, quick-connect interface for development and testing.

Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.

Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.

Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.

Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • SWD Only: Supports Serial Wire Debug programming and debugging
  • 6-Pin SWD Header: Standard pinout (VTG, nRST, SWDIO, CLK, SWO, GND)
  • 10-Pin IDC Input: Connects directly to the Atmel ICE ARM port
  • Broad SAM Support: Works with all SAM devices that use SWD
  • Direct Connection: No extra components or configuration required
  • Compact Design: Saves bench space and reduces wiring complexity
