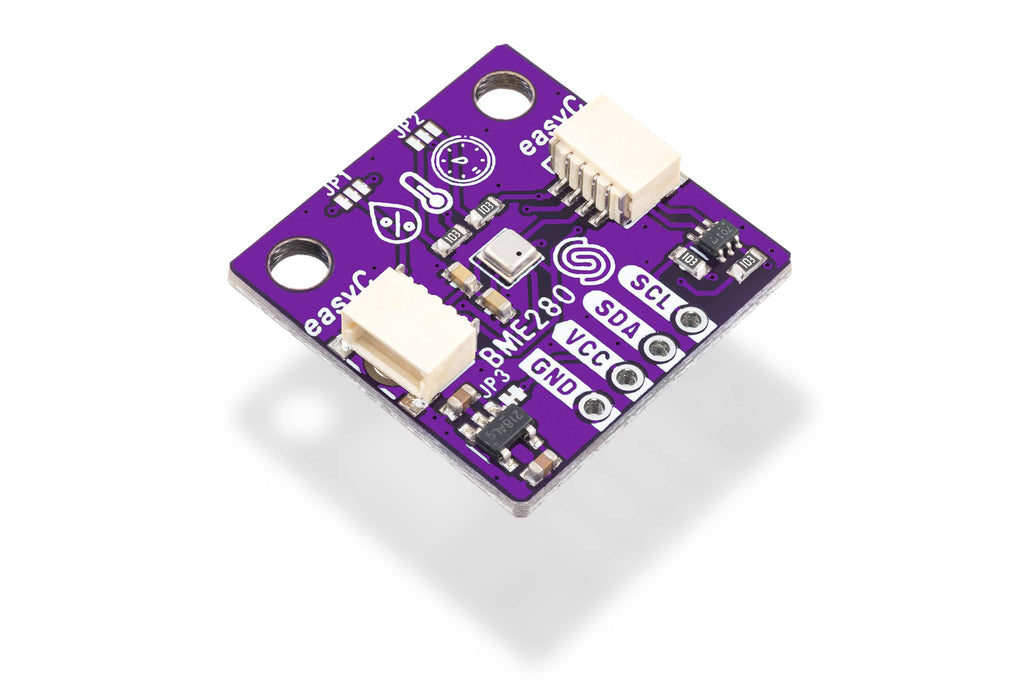

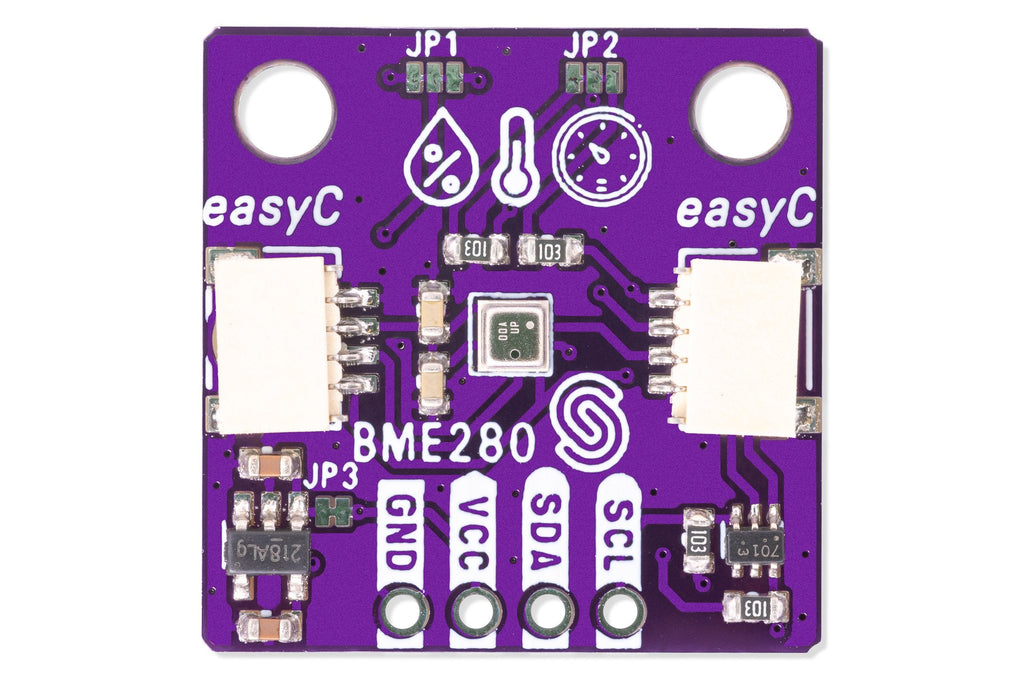

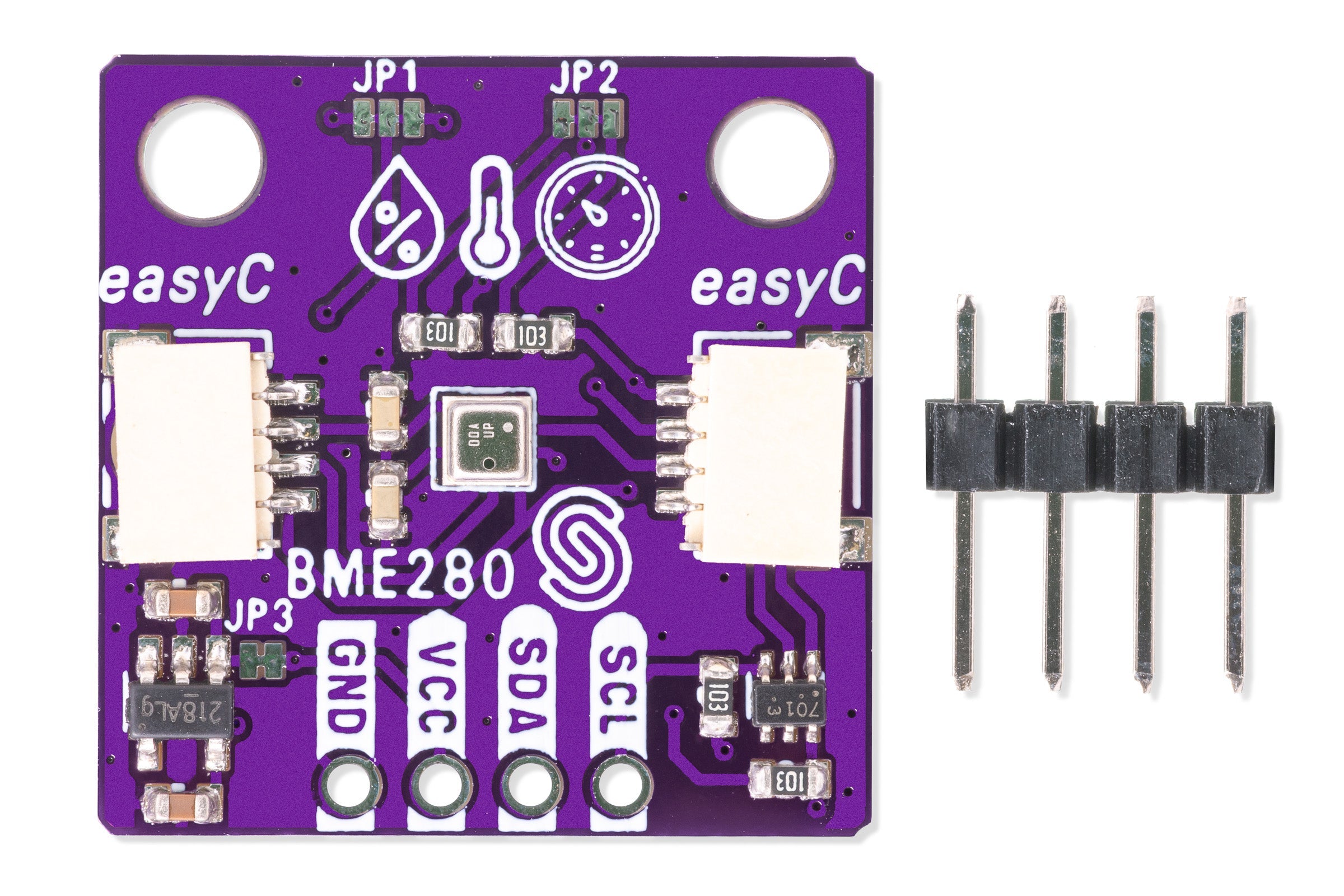

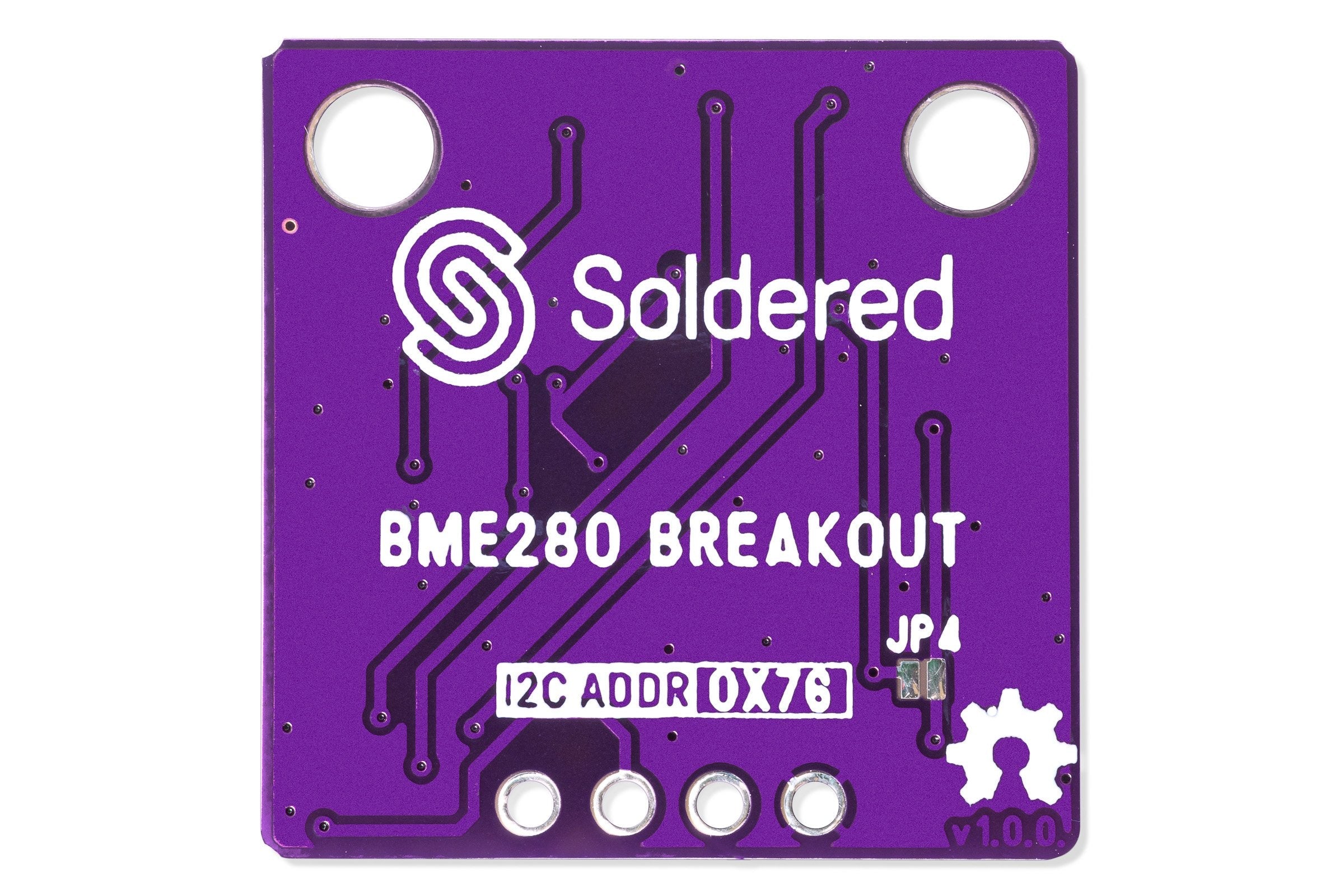

Enviromental sensor BME280 breakout-easyC ecosystem
contain
contain
contain
contain
SKU: 333036
$14.31

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

BME280 is an atmospheric sensor which measures 3 values: temperature, pressure, and humidity. Additionally, it is possible to calculate elevation. It is simple to use since it communicates via I2C and it is extra small sized so it can be put anywhere. Everything you need to know about the atmospheric condition – this sensor can measure for you; just ideal for meteorological station projects! This board comes with two Qwiic connectors, providing easy connections.

Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.

Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.

Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.

Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Voltage: 3.3V
  • Pressure range: 30kPa - 110kPa
  • Pressure error: +-12Pa
  • Temperature range: -40C - 80C
  • Temperature error: +-1C
  • Humidity range: 0% - 100%
  • Humidity error: +-2%
  • Current while measuring: 1mA
  • Current while idle: <5uA
  • Communication: I2C
  • Dimensions: 22 x 22 mm / 0.9 x 0.9 inch
