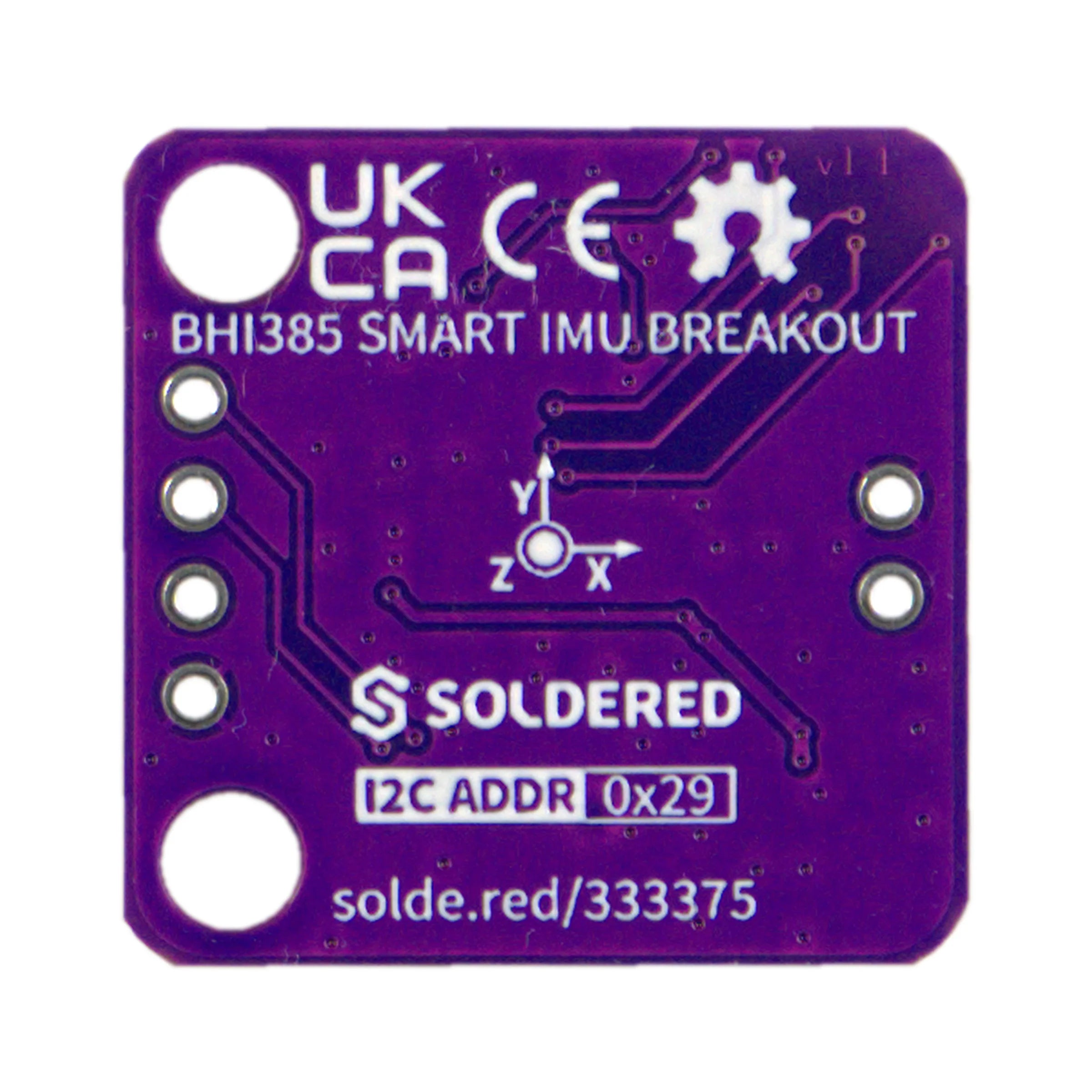

Soldered BHI385 Smart IMU Breakout
€12,95
Skip to product information
SKU: 333375
€12,95
Add-Ons
Add-Ons
24/7 lifetime customer and technical support
2-year Warranty -no questions asked
Comprehensive Documentation
Open-source everything
Made in EU
Designed and manufactured in Croatia.
In-stock in EU warehouse
Ships from Croatia, fast EU delivery.
Volume discounts
Educational and OEM pricing on request.
2-year warranty
Standard EU 2-year warranty on all Soldered products.
Complimentary technical support
Our engineers answer your questions free of charge.
Qwiic
Solderless Qwiic connector, chain it to any Qwiic board with a single cable.
Breadboard-compatible
2.54 mm pin spacing, drops straight onto any breadboard.
LEGO-compatible
Mounting holes line up with LEGO spacing and peg size.
Description

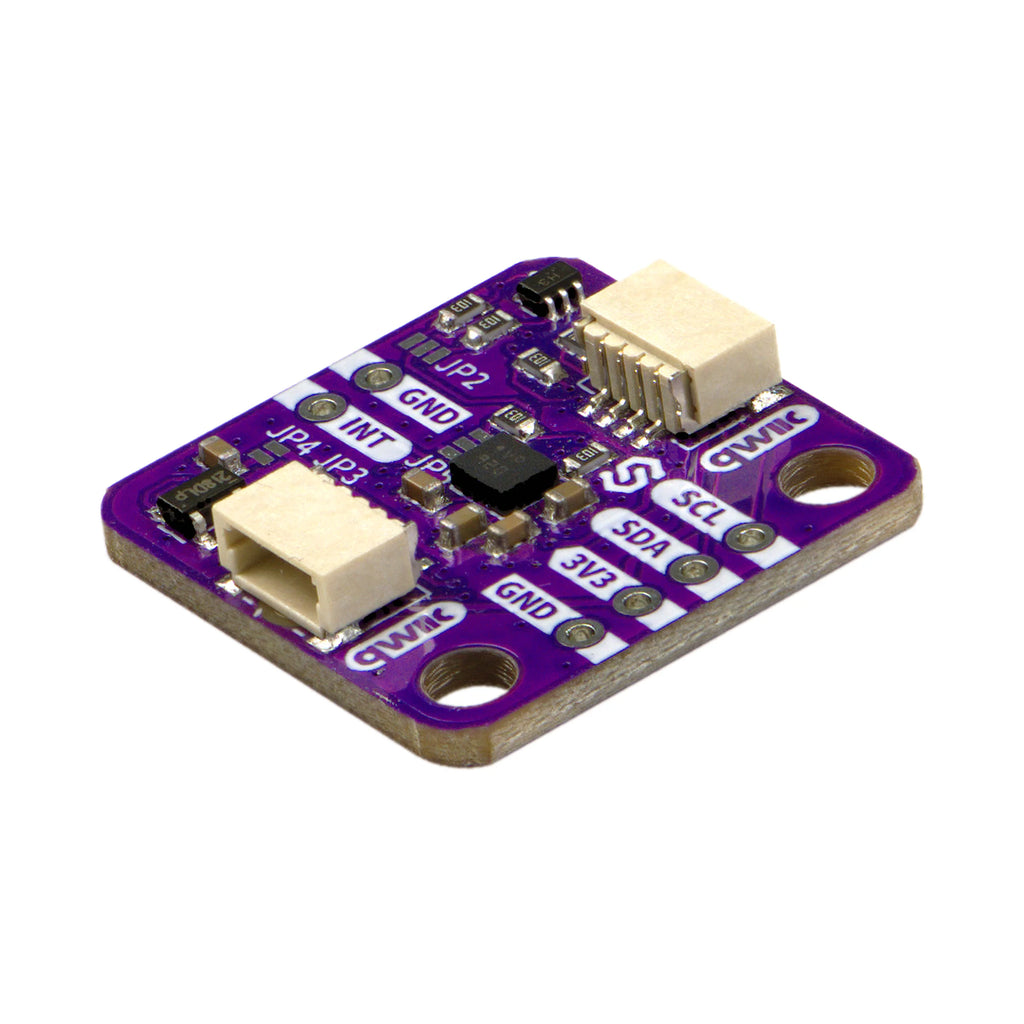

BHI385 Smart IMU Breakout is built around Bosch Sensortec's BHI385, a 6-axis IMU with a 3-axis accelerometer and 3-axis gyroscope, plus an onboard 32-bit ARC EM4 processor running Bosch's BSX sensor fusion firmware. Instead of raw accelerometer and gyroscope samples, the chip outputs virtual sensors directly: 3D orientation, step count, tap detection, and wrist gesture recognition, without putting any of that processing load on the host microcontroller. A Soldered Arduino library is available to read these outputs directly.

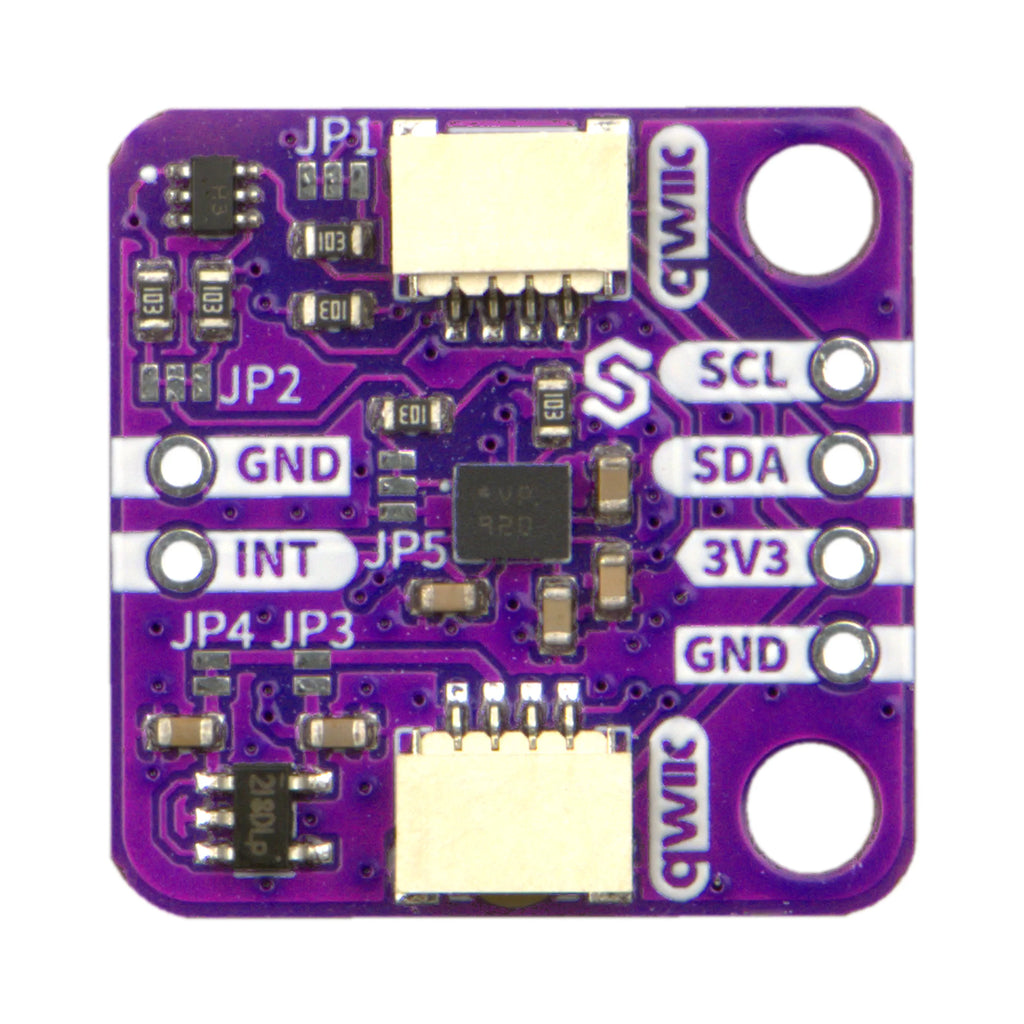

The board runs from a 3.3V supply. An onboard LDO regulates that down to the 1.8V the BHI385 needs, and an onboard I2C level shifter handles the translation between the 3.3V logic side and the chip's 1.8V domain, so no external components are required. It communicates over I2C at up to 400 kHz, with a default address of 0x29; to switch to 0x28, remove the solder bridge on JP5 from the 0x29 pad and resolder it onto the 0x28 pad.
The accelerometer covers ±4 to ±32 g and the gyroscope covers ±125 to ±2000 dps, both software-selectable. Current draw is about 5 µA in sleep mode, 200 µA with only the accelerometer running, and 1.4 mA with the accelerometer and gyroscope both active. The board measures 23 x 23 mm, with two mounting holes sized for M3 screws.
Technical Specifications
- IC: Bosch BHI385
- Sensors: 3-axis accelerometer, 3-axis gyroscope
- Measurement range: Accelerometer ±4/±8/±16/±32 g, Gyroscope ±125/±250/±500/±1000/±2000 dps
- Onboard processor: 32-bit ARC EM4 (Fuser2), runs Bosch BSX sensor fusion
- Communication: I2C, up to 400 kHz
- I2C address: 0x29 (default), 0x28 via JP5 jumper
- Operating voltage: 3.3V (onboard LDO regulates to 1.8V for the chip)
- Current consumption: ~5 µA sleep, ~200 µA accelerometer only, ~1.4 mA accelerometer + gyroscope
- Connector: 2x Qwiic (formerly qwiic)
- Dimensions: 23 x 23 mm / 0.9 x 0.9 inch
