Simple soil humidity sensor
SKU: 333045
€3,95

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

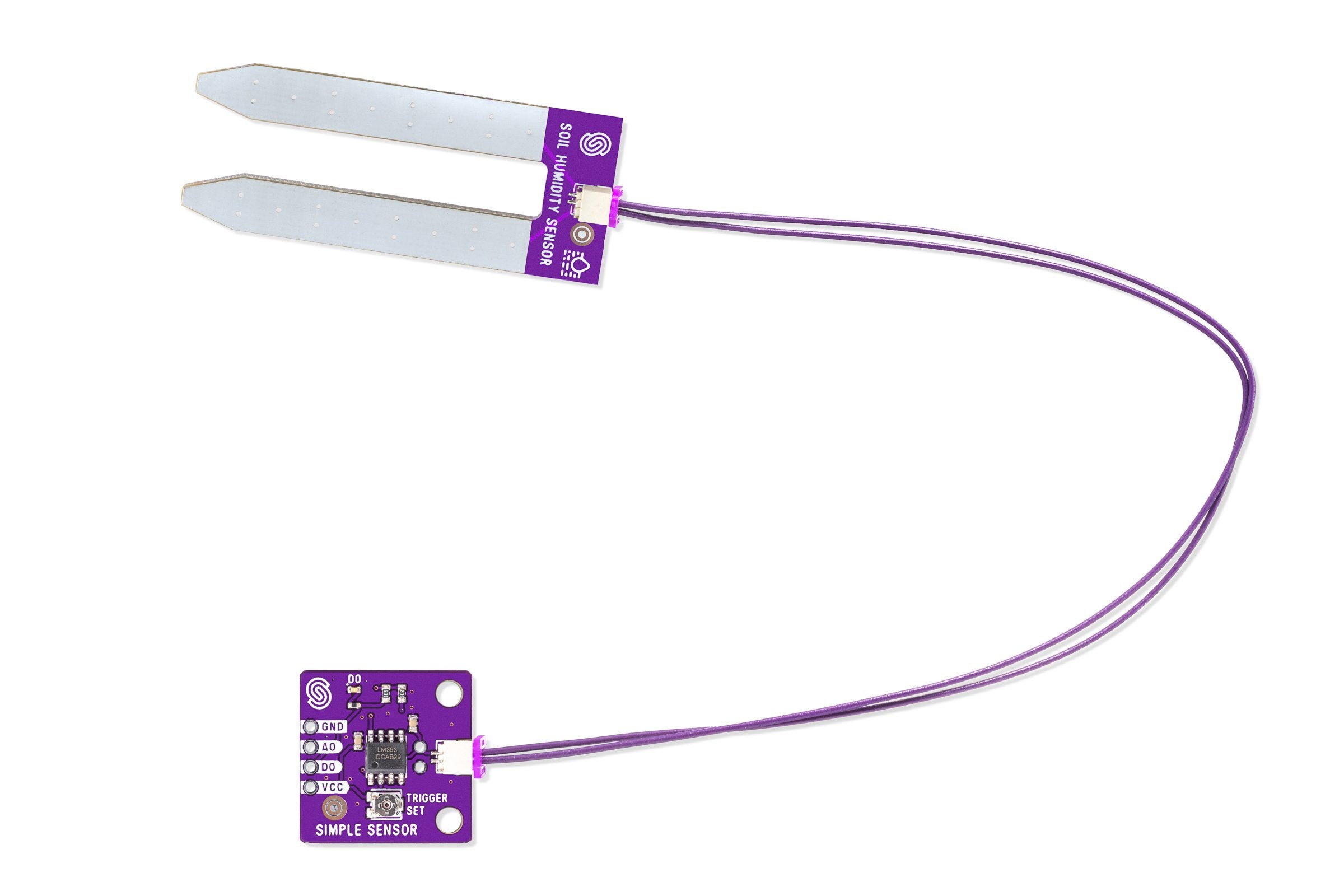

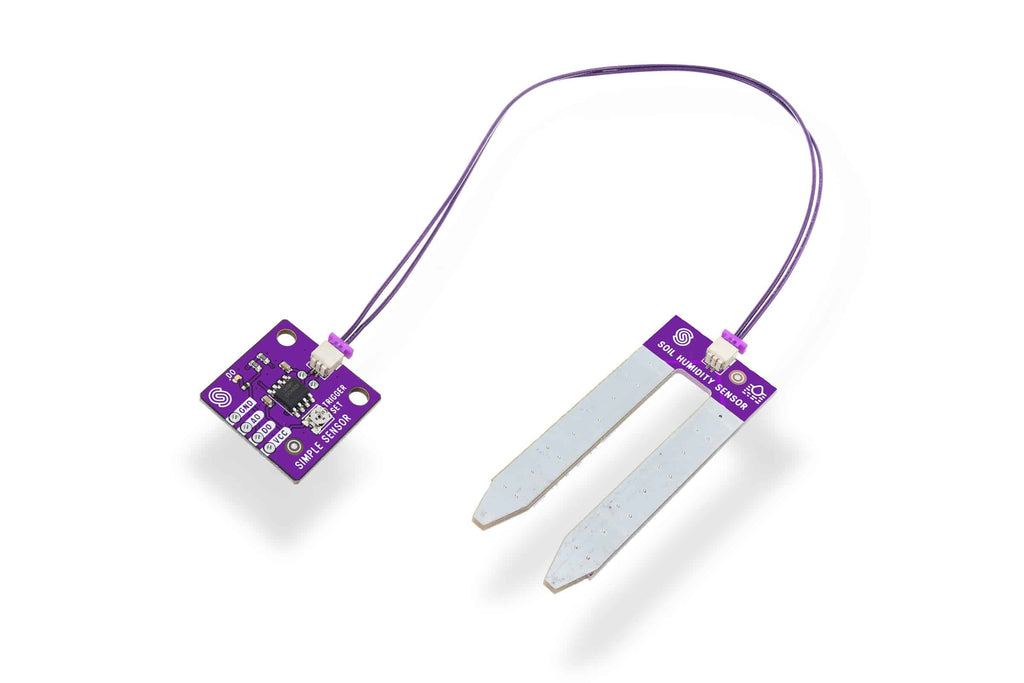

How many times have you watered your plants and feared you’re overdoing it? With the simple soil humidity sensor, those worries are a thing of the past! This two-part sensor is straightforward to use. The two exposed prongs go into the soil and send the humidity information to the sensor via the connected wire. The more water is in the ground, the better the results will be.

The two pieces are connected with the provided JST-SH 2-pin cable. The sensor uses the LM393 differential comparator. The main benefit of this board is ability to give analog (0V-VCC) and digital output (HIGH/LOW). By setting the potentiometer on the board, you are able to get digital signal at the DO pin when signal crosses certain value, while analog values will be present on the AO pin at all times.
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Logic voltage level: as same as VCC
  • Operating voltage: 3V3 - 5V
  • Connectors: JST-SH 2-pin (female)
  • Comparator onboard: LM393
  • Mounting holes: 2 (on simple sensor)
  • Dimensions: 54 x 22 mm, 22 x 22 mm / 2.1 x 0.9 inch, 0.9 x 0.9 inch

Resources & Documentation

DEVELOPMENT & RESOURCES
ARDUINO LIBRARY PRODUCT DATASHEET HARDWARE DETAILS ARDUINO LIBRARY DOCUMENTATION
CERTIFICATES & COMPLIANCE
CE CERTIFICATE UKCA CERTIFICATE
DOCUMENTATION & TUTORIALS
FULL PRODUCT DOCUMENTATION GETTING STARTED WITH ARDUINO
