Some electronic components look more important than others.
A display feels exciting because you can see it. A sensor feels useful because it measures something. A motor feels impressive because it moves.

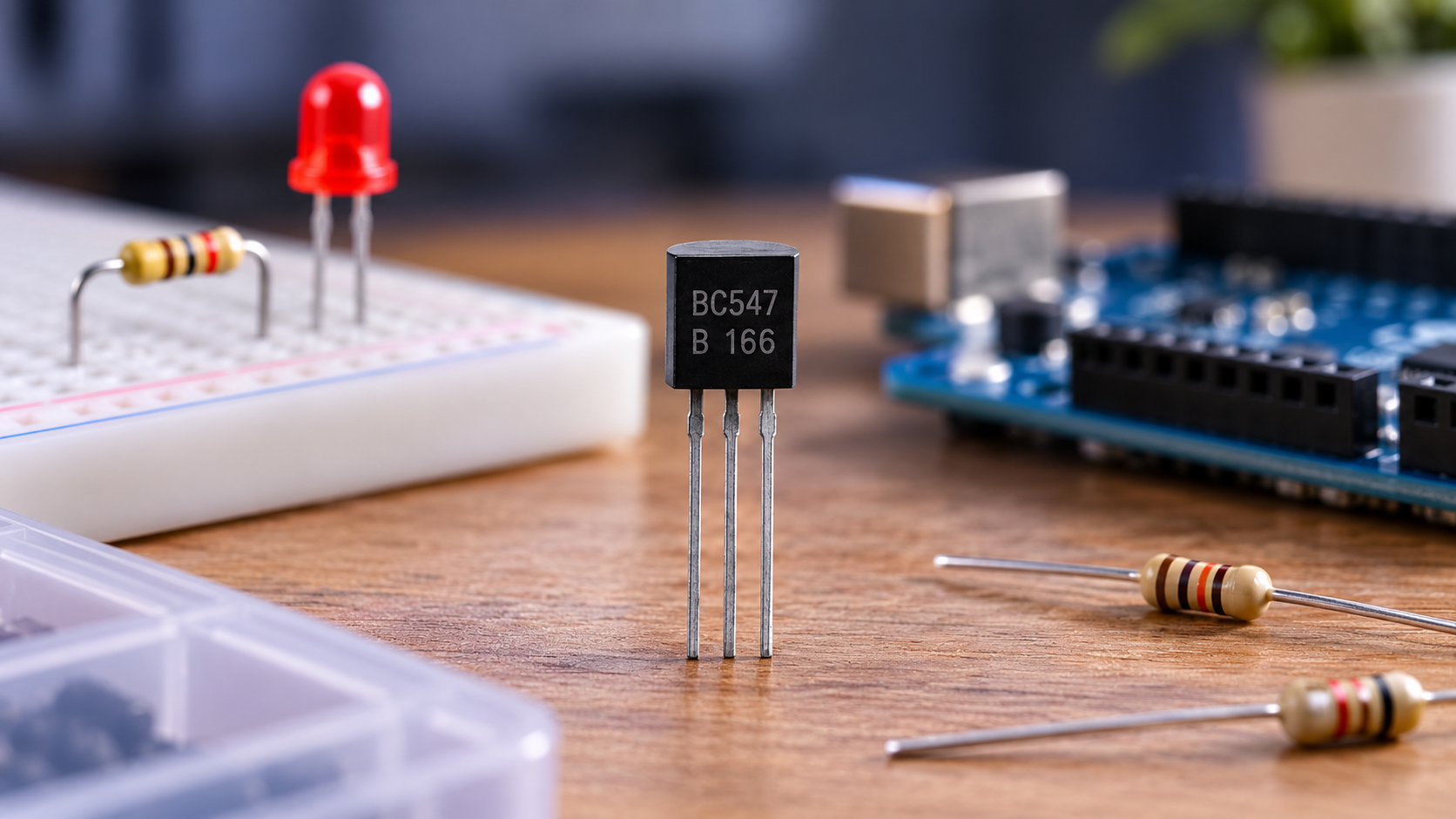

A small transistor like the BC547 is different. At first glance, it does not look like much. It has three tiny legs, a black plastic body, and no obvious sign of what it does. But once you understand how it works, you start seeing why transistors are one of the most important building blocks in electronics.
The BC547 is often used as a small electronic switch or signal amplifier. That means a tiny signal from a button, sensor, Arduino-compatible board, or microcontroller can control something else in the circuit, such as an LED, buzzer, relay, or small load.
For beginners, this is a big step. You are no longer just turning an LED on directly from a board. You are learning how one part of a circuit can control another part, which is the foundation of many real electronics projects.
What is a BC547 transistor?
A BC547 is a small NPN transistor commonly used in low-power electronics circuits. It can work as a tiny electronic switch or as a signal amplifier, depending on how it is connected.
The easiest way to understand it is this:
A small current going into the base pin can control a larger current flowing between the collector and emitter pins.
That makes the BC547 useful when a microcontroller, button, or sensor needs to control another part of a circuit. For example, you can use it to turn on an LED, activate a buzzer, control a small relay, or build simple sensor-based projects.
For beginners, the BC547 is a great component to learn because it introduces one of the most important ideas in electronics: using a small signal to control a bigger action.
You will often see BC547 transistors in projects such as:
-
LED switching circuits
-
buzzer alarms
-
simple audio circuits
-
sensor circuits
-
relay control
-
beginner Arduino-compatible projects
If you are learning electronics step by step, it is also a good component to use alongside basic parts like LEDs, resistors, buttons, and a breadboard.
BC547 transistor pinout explained
The BC547 transistor has three pins: collector, base, and emitter. Each pin has a different role, so wiring them correctly is important.
|
Pin |
Name |
What it does |
|
C |
Collector |
Current enters through this pin |
|
B |
Base |
Controls the transistor |
|
E |
Emitter |
Current exits through this pin |
The base is the control pin. When a small current reaches the base, the transistor can allow current to flow from the collector to the emitter. That is what makes the BC547 useful as a small electronic switch.
For the common BC547 TO-92 package, the pinout is often shown like this when the flat side is facing you and the legs point downward:
Flat side facing you
↓
C B E
However, it is always a good idea to check the datasheet for the exact transistor you are using. Pin orientation matters. If you accidentally swap the collector and emitter, the circuit may not work correctly, even if everything else seems wired properly.
A multimeter can also be useful when learning transistor circuits. You can use it to check connections, test continuity, measure voltage, and troubleshoot simple wiring mistakes before assuming your code or board is the problem.
BC547 as a switch
One of the most common beginner uses for the BC547 transistor is using it as a simple electronic switch.
A microcontroller pin can turn an LED on and off directly, but it cannot always safely power every component by itself. If you want to control a buzzer, relay, LED segment, small motor, or another load, a transistor can help. Instead of making the board power the component directly, the board sends a small control signal to the base of the BC547, and the transistor switches the output device on or off.
The basic idea looks like this:
Arduino or ESP32 pin sends signal
Small current reaches the base
BC547 turns on
Current flows through the load
LED, buzzer, relay, or small motor activates
This is useful because the transistor acts like a helper between the microcontroller and the output component. Your board controls the transistor, and the transistor controls the load.
You can use a BC547 switching circuit to:
-
turn on an LED or LED segment
-
activate a buzzer
-
trigger a relay
-
control a very small motor
-
switch a simple low-power load
-
create alarms, counters, indicators, and sensor-based outputs
For Arduino-style beginner circuits, a kit like Make Your Own Dasduino is a good fit because it helps learners understand how a microcontroller board is built and how components like resistors, LEDs, buttons, and transistors work together.
For connected projects, you can use an ESP32-based board instead. For example, a BC547 switching circuit connected to NULA Mini ESP32-C6 could be used in a Wi-Fi alarm, smart sensor, Home Assistant input device, or remote notification project.
Just remember that the BC547 is meant for low-power switching. For larger motors, high-current LED strips, or heavier loads, use a proper motor driver, relay board, MOSFET, or other switching component designed for that job.
Beginner BC547 transistor project ideas
Once you understand the basic idea behind the BC547, the next step is to use it in a few small projects. These do not need to be complicated. The goal is to see how a small signal can control another part of a circuit.
Here are a few beginner-friendly BC547 project ideas you can build and expand over time.
1. LED switch circuit
An LED switch circuit is one of the simplest ways to understand how a BC547 works as a transistor switch.
Instead of powering the LED directly from a digital pin, the board sends a small signal to the base of the BC547. When the transistor turns on, current flows through the LED circuit. When the signal stops, the LED turns off.
Basic process:
-
Connect the BC547 emitter to ground
-
Connect the LED and resistor on the collector side
-
Connect the base to a digital pin through a resistor
-
Set the pin HIGH to turn the transistor on
-
Set the pin LOW to turn it off
This project is great for learning how digital outputs, resistors, LEDs, and transistor switching work together
2. Buzzer alarm circuit
A buzzer alarm is a simple project that feels more interactive than only blinking an LED. You can use a button, switch, or sensor as the input, and then use the BC547 to activate a buzzer when something happens.
For example, pressing a button could trigger the alarm. Later, you could replace the button with a sensor, door switch, or motion input.
Basic process:
-
Connect your button, switch, or sensor as an input.
-
Connect the buzzer as the output controlled through the BC547.
-
Write code that checks the input state.
-
Turn the transistor on when the alarm should activate.
-
Turn it off when the alarm should stop.
A solder kit is a nice step here because it helps beginners move from breadboard experiments to real assembled electronics. For Arduino-style learning, Make Your Own Dasduino is a good fit.
3. Touch sensor switch
A BC547 can also be used in a simple touch sensor switch. In this kind of project, a small input signal triggers the transistor, which then switches an output such as an LED or buzzer.
This is a useful project because it shows that a transistor can react to more than just a normal button press. It can respond to small signals and use them to control something more visible.
Basic process:
-
Create a simple touch input or connect a touch sensor module.
-
Send the input signal to your board or transistor circuit.
-
Use the BC547 to switch an LED, buzzer, or indicator.
-
Test how the circuit reacts when the touch input is triggered.
-
Expand the project by adding wireless notifications or smart home logic.
For connected versions, an ESP32-based board like NULA Mini ESP32-C6 can turn a simple switch idea into an IoT project.
4. Small motor control
You can use a BC547 to control a very small low-current motor, but this is where you need to be more careful. Motors usually need more current than LEDs or buzzers, and they can create voltage spikes when they turn off.
For a beginner version, start with a very small motor and make sure the current is within the safe range for the transistor. If the motor is inductive, add a flyback diode to protect the transistor and board.
Basic process:
-
Connect the motor as the load controlled by the BC547
-
Add a base resistor between the board pin and the transistor base
-
Add a flyback diode across the motor if needed
-
Turn the transistor on and off from code
-
Watch how the motor responds to the control signal
A small vibrating motor can be a fun low-power output for feedback, alerts, or simple robotics experiments.
For stronger motor projects, use a proper motor driver instead of relying only on the BC547. A motor driver is designed to handle higher current and gives you better control over direction and speed.
5. Counter or status indicator
A BC547 can also be used to control an indicator in a small counter or status project. For example, a sensor or button can increase a count, while the transistor switches an LED indicator when a certain condition is reached.
You can start with a simple LED output, then make the project more useful by adding a display.
Basic process:
-
Use a button, sensor, or switch as the input
-
Count how many times the input is triggered
-
Use the BC547 to control an LED indicator
-
Show the current count or status on a display
-
Add reset or mode buttons if you want to expand the project
A 16x2 LCD is a practical display for showing a number, status message, or simple menu while you learn how inputs and outputs work together.
6. E-paper electronics status dashboard
For a more Soldered-specific project, you can use a BC547 circuit as part of a small electronics status dashboard. Instead of only turning an LED on or off, the project can show what is happening in the circuit on an e-paper display.
For example, the dashboard could show:
-
output on or off
-
sensor triggered
-
alarm active
-
motor enabled
-
last event detected
Basic process:
-
Build a simple BC547 switching circuit
-
Connect the circuit state to your board
-
Format the status as text or icons
-
Show the information on an Inkplate display
-
Refresh the display when the circuit state changes
This type of project is useful for classrooms, workbenches, and learning setups because the display makes the circuit easier to understand at a glance. E-paper works especially well here because the information does not need to update every second, but it should stay visible while you test and learn.
For a compact electronics status display, Inkplate 2 is a good fit.
For a larger classroom or workbench dashboard, Inkplate 10 gives you more space for labels, circuit states, simple diagrams, and troubleshooting notes.
How to choose the right transistor for your project
The BC547 is a great transistor for learning because it is simple, common, and useful in many low-power circuits. It is a good choice when you want to control a small output or understand how transistor switching works.
Use a BC547 for projects such as:
-
LEDs
-
buzzers
-
small signal switching
-
sensor circuits
-
beginner learning projects
However, the BC547 is not the right choice for every load. If your project needs to control something that uses more current, more voltage, or more power, you may need a different transistor, a MOSFET, a relay, or a dedicated motor driver.
Choose another solution for:
-
larger motors
-
high-current LED strips
-
high-voltage circuits
-
high-power loads
-
AC mains projects
For example, if you are switching a small LED indicator, the BC547 is usually enough. If you are controlling a motor, a heater, a pump, or another larger load, you should use a component designed for that job.
A relay board can be useful when your low-voltage control circuit needs to switch a separate external load. It keeps the control side and load side easier to manage, but you still need to follow proper safety rules, especially around higher voltages.
Why Soldered is a great place to start learning transistor circuits
A transistor may look like one of the simplest components on your desk, but it teaches a big electronics idea: how a small signal can control something larger.
Once you understand that, circuits start to feel much more flexible. A button can activate a buzzer. A sensor can switch an LED indicator. A microcontroller can control an output without powering it directly. A small signal can become the start of a more useful project.
That is why the BC547 is such a good component for beginners. It is simple enough to use in basic breadboard circuits, but it also introduces concepts that appear everywhere in electronics, from alarms and counters to motor control, relay switching, and embedded systems.
At Soldered, you can find beginner-friendly kits, boards, displays, motors, drivers, and switching modules that help you move from simple transistor experiments to more complete projects. Start with an LED or buzzer circuit, then add sensors, displays, wireless connectivity, or even an Inkplate dashboard as your confidence grows.
Whether you are learning electronics for the first time, building a classroom demo, or prototyping your next maker project, Soldered gives you the tools to turn small components into working circuits.
BC547 transistor: FAQs
What is a BC547 transistor?
A BC547 is a small NPN bipolar junction transistor commonly used in low-power electronics circuits. It can be used as a switch or amplifier in beginner projects, sensor circuits, LED circuits, buzzer alarms, and Arduino-compatible projects.
What is the BC547 transistor used for?
The BC547 transistor is used for small signal switching and amplification. In beginner electronics, it is often used to control LEDs, buzzers, small loads, relay inputs, sensor outputs, and simple alarm circuits.
Is BC547 an NPN or PNP transistor?
BC547 is an NPN transistor. This means it turns on when a small positive current is applied to the base pin, allowing current to flow from the collector to the emitter.
What is the pinout of a BC547 transistor?
A BC547 transistor has three pins: collector, base, and emitter. The base controls the transistor, the collector is where current enters, and the emitter is where current exits. Always check the datasheet or package orientation before wiring it, because reversing the pins can stop the circuit from working correctly.
Can I use BC547 as a switch?
Yes. BC547 is commonly used as a small electronic switch. A microcontroller pin sends a small signal to the base, and the transistor switches another component on or off, such as an LED, buzzer, relay input, or small low-power load.
Can I use BC547 with Arduino?
Yes. You can use a BC547 transistor with an Arduino-compatible board to control outputs such as LEDs, buzzers, relay modules, and small loads. The Arduino pin connects to the transistor base through a resistor, while the transistor handles the switching.
Do I need a resistor with BC547?
Yes, in most circuits you should use a resistor between the microcontroller output pin and the base of the BC547. This limits the base current and helps protect both the transistor and the microcontroller board.
Can BC547 drive a motor?
BC547 can only control very small low-current motors. For larger motors, it is better to use a dedicated motor driver, MOSFET, or relay module. Motors can draw more current than the BC547 can safely handle and may also create voltage spikes when switching off.
