GNSS GPS L86-M33 breakout
SKU: 333201
€24,95

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

Global Navigation Satellite Systems (GNSS), or as we all like to call it "GPS," enable precise location determination on Earth. Thanks to this module, you can use GNSS for your project and employ the device for asset tracking or create a wearable device. The module is small, energy-efficient, highly effective, and easy to use thanks to its built-in antenna.



L86-M33 is a GNSS receiver, meaning it can receive signals from GPS, GLONASS, and Galileo constellations. Equipped with EASY (Embedded Assist System for self-generated orbit prediction) and AlwaysLocate technologies, the L86-M33 ensures fast and accurate positioning even in challenging environments. Its advanced internal logger, LOCUS, allows you to store your routes and location data.

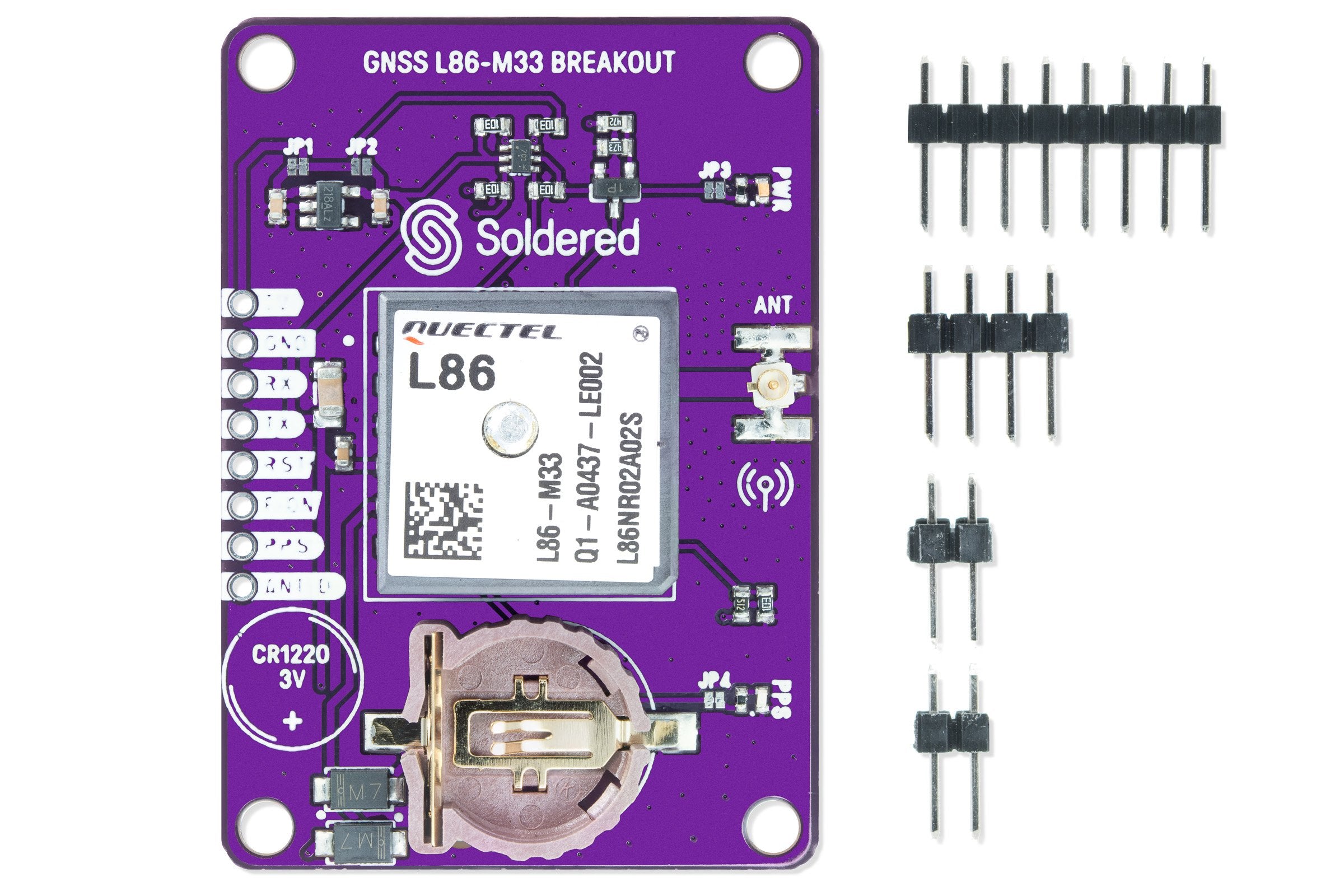

In addition to the aforementioned L86-M33 module, which has an integrated antenna, our breakout board also has a connector for a CR1220 battery that is used as a backup for timekeeping and GPS data. The module can operate without a battery, but each time it will have to pull data from the satellites anew (cold start). If the integrated antenna is not sufficient, there is an IPX connector on the board for adding an external, stronger antenna. To easily access the pins of the module, the pins are exposed on the board for easy access.
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • GNSS: GPS+GLONASS+Galileo
  • Onboard ceramic anntena
  • Option to connect external IPX antenna
  • CR1220 battery for time retention (battery not included)
  • IC: L86-M33
  • Voltage: 3V3
  • Max. update rate: 10Hz
  • Dimensions: 54mm x 38mm / 2.1 x 1.5 inch

Resources & Documentation

DEVELOPMENT & RESOURCES
ARDUINO LIBRARY OPEN SOURCE HARDWARE FILES PRODUCT DATASHEET HARDWARE DETAILS ARDUINO LIBRARY DOCUMENTATION PINOUT DRAWING
CERTIFICATES & COMPLIANCE
CE CERTIFICATE UKCA CERTIFICATE
DOCUMENTATION & TUTORIALS
FULL PRODUCT DOCUMENTATION GETTING STARTED WITH ARDUINO
