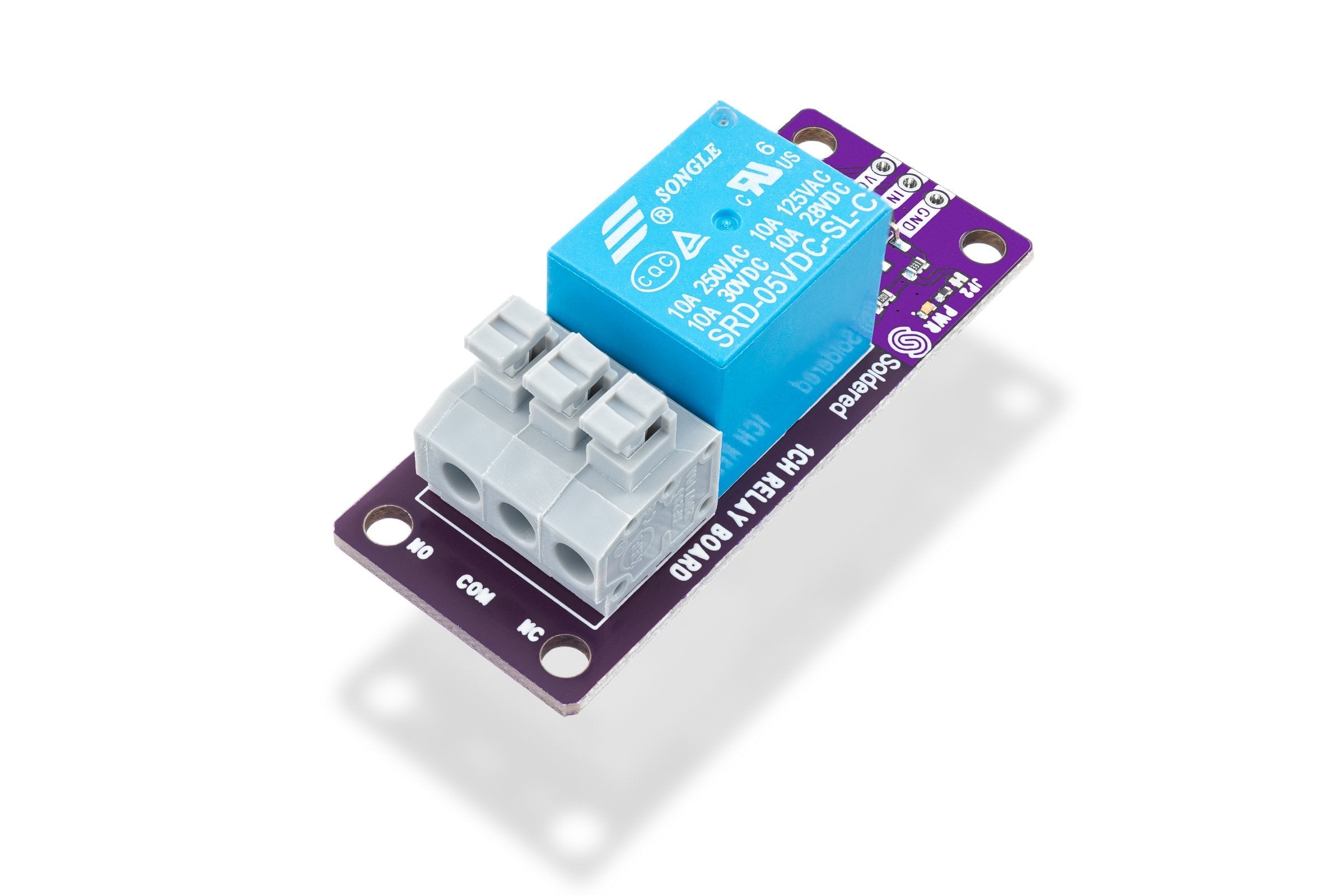

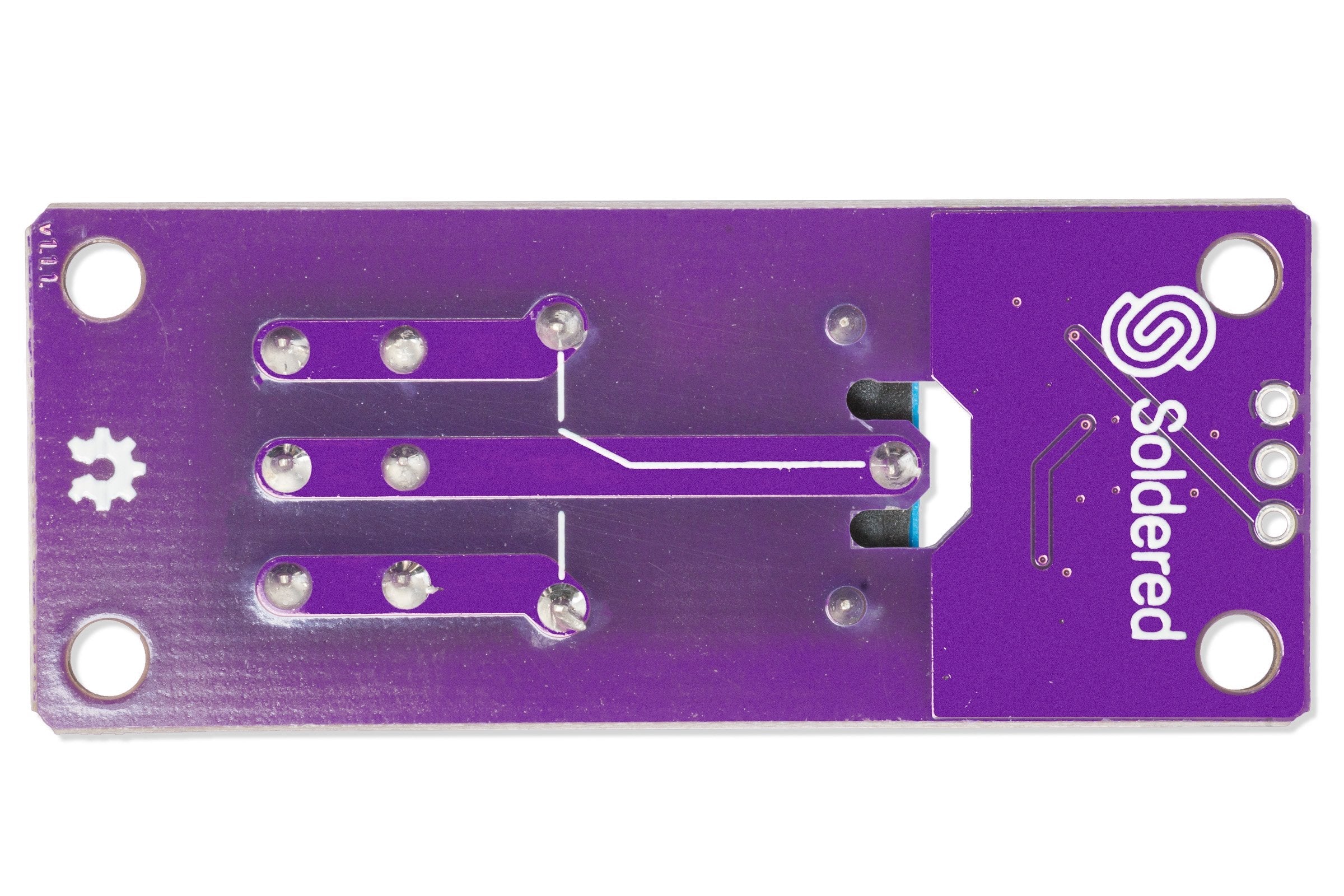

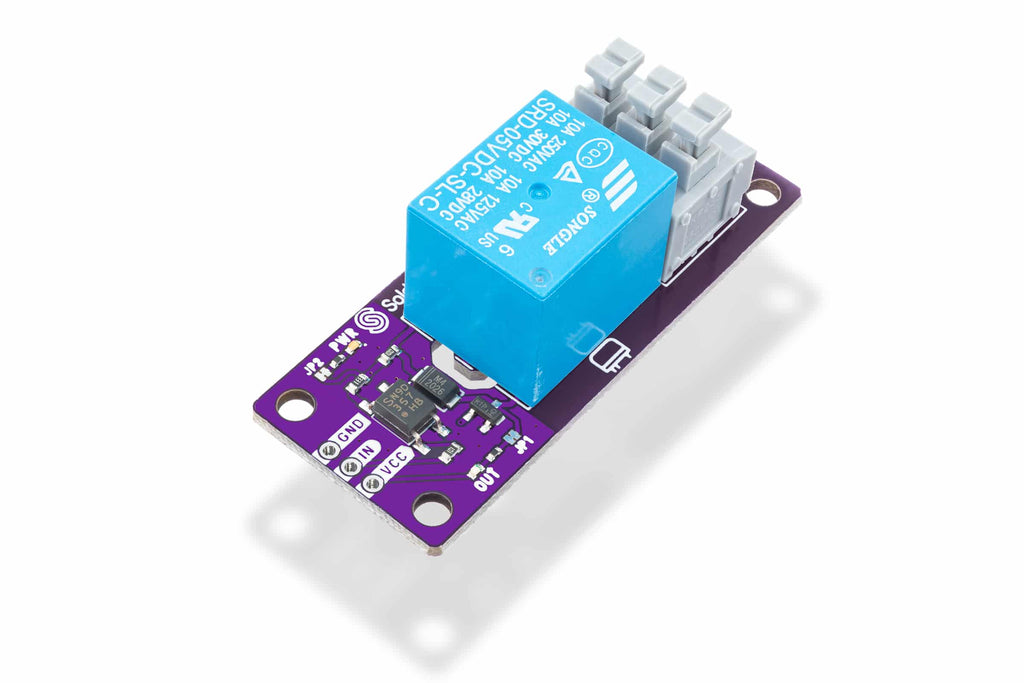

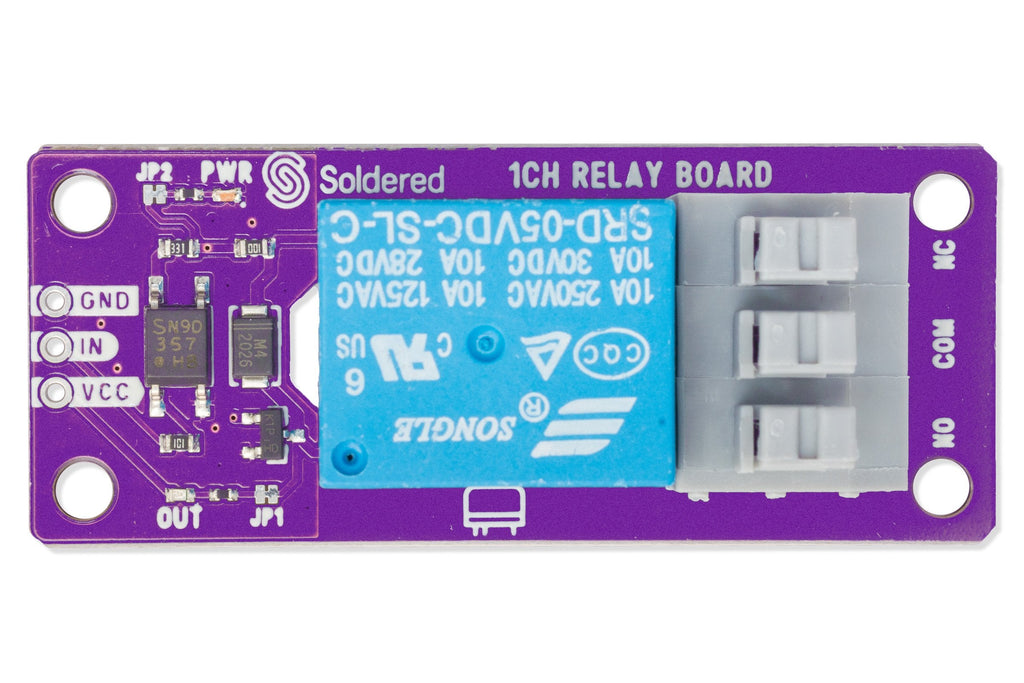

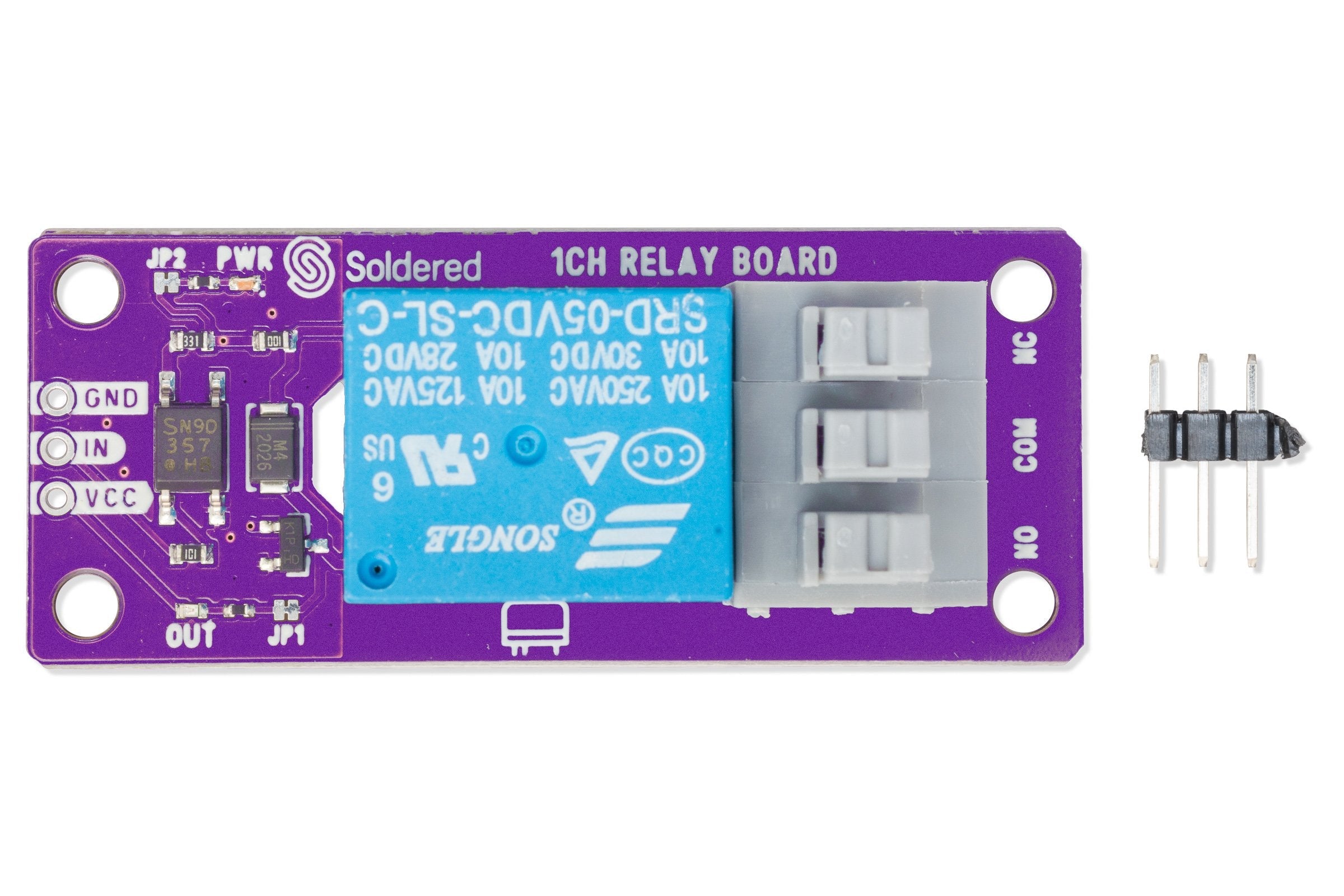

1-Channel Relay Board
€6,95
Skip to product information
SKU: 333024
€6,95
Add-Ons
Add-Ons
24/7 lifetime customer and technical support
2-year Warranty -no questions asked
Comprehensive Documentation
Open-source everything
Made in EU
Designed and manufactured in Croatia.
In-stock in EU warehouse
Ships from Croatia, fast EU delivery.
Volume discounts
Educational and OEM pricing on request.
2-year warranty
Standard EU 2-year warranty on all Soldered products.
Complimentary technical support
Our engineers answer your questions free of charge.
Breadboard-compatible
2.54 mm pin spacing, drops straight onto any breadboard.
3.3 V & 5 V tolerant
Built-in level shifting, safe to use with both 3.3 V and 5 V logic levels.
LEGO-compatible
Mounting holes line up with LEGO spacing and peg size.
Description
Did you ever want to turn on and off a device that needs large current or voltage? Whether operating on DC or AC, a relay is what you need. A relay is an electronic switch that is activated by a signal we send from a Dasduino or Arduino. This module further simplifies the whole process, because it contains everything you need for the relay to work, and you just have to connect it to the microcontroller and power supply. You don't even have to think about voltages and currents, insulation between high and low voltage or grounding, everything is already taken care of on the board.
Technical Specifications
- Max. DC voltage and current: 30V, 10A
- Max. AC voltage and current: 250V, 10A
- Number of relays: 1 relay
- Dimensions: 54 x 22 mm / 2.1 x 0.9 inch
