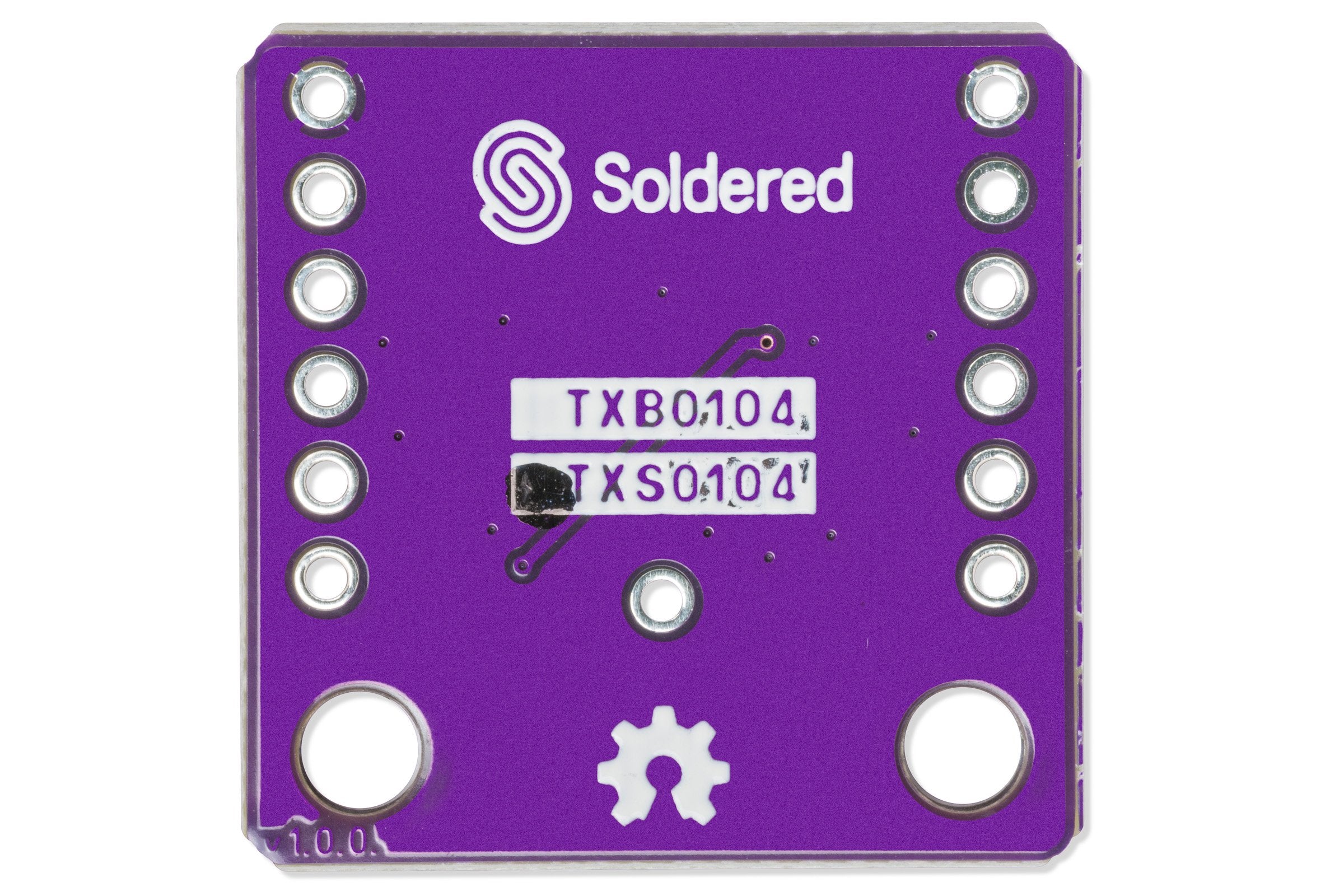

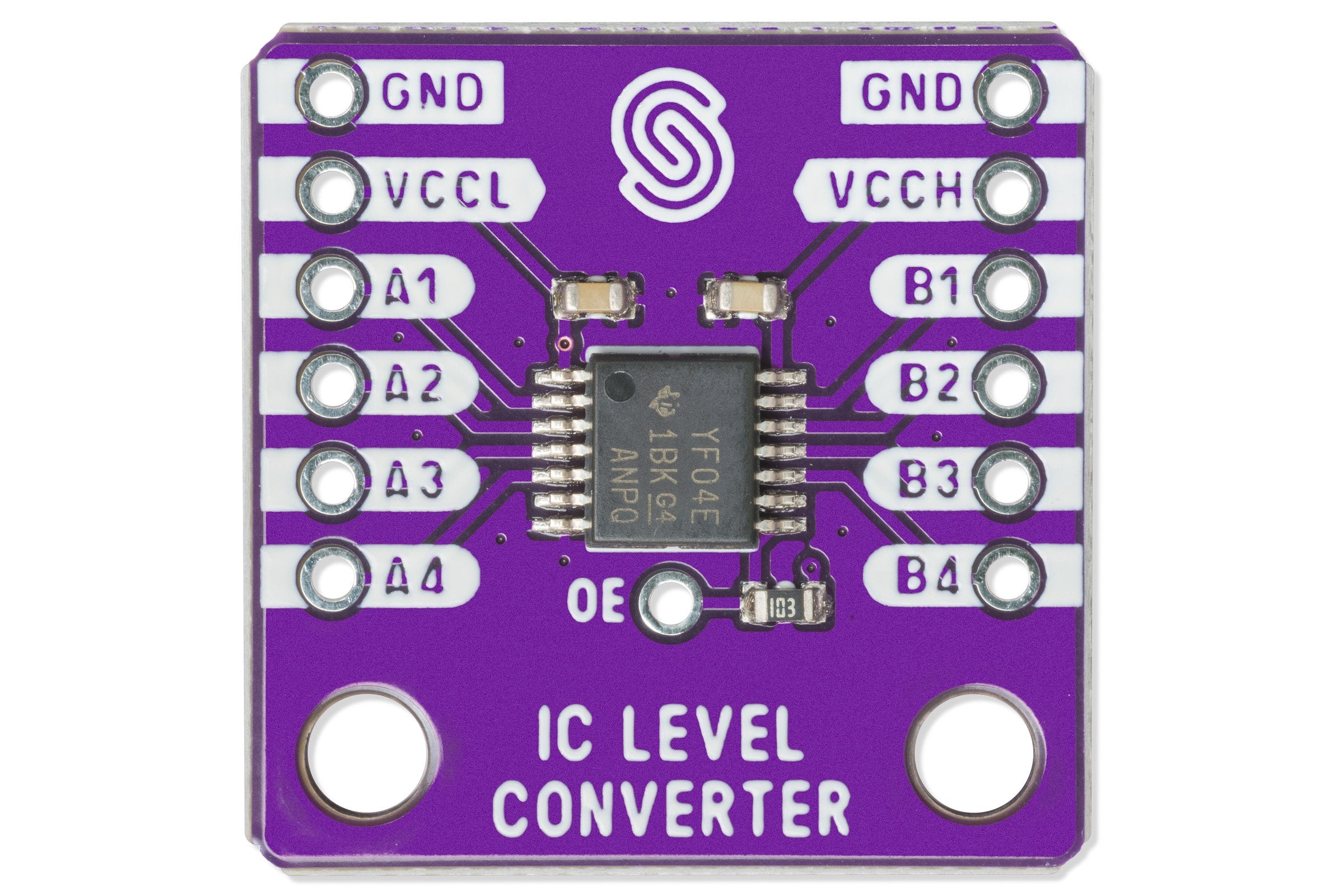

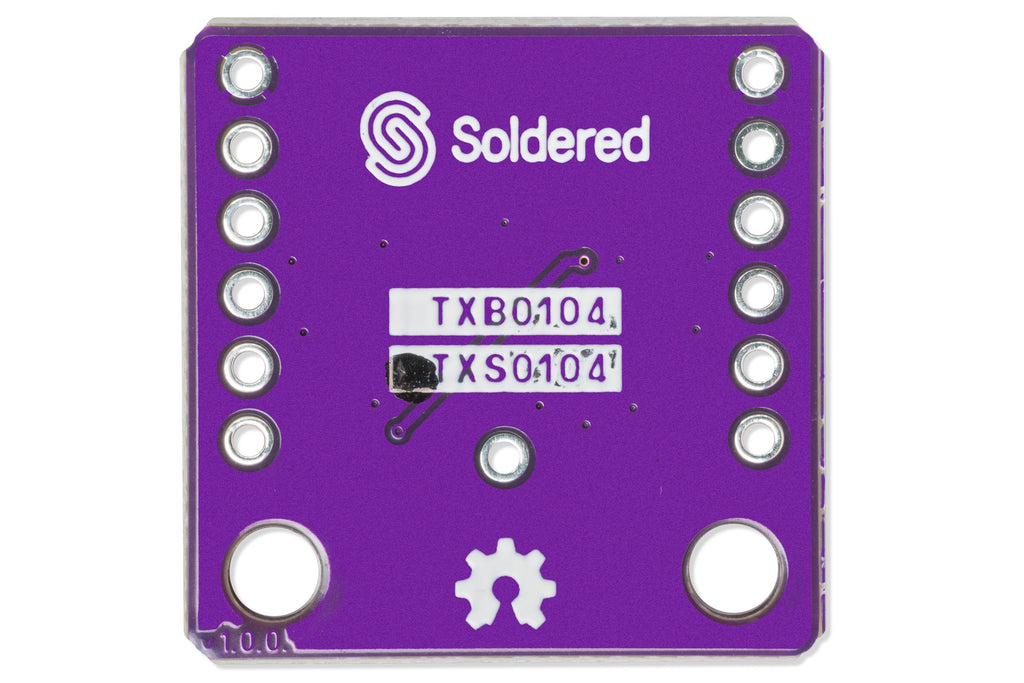

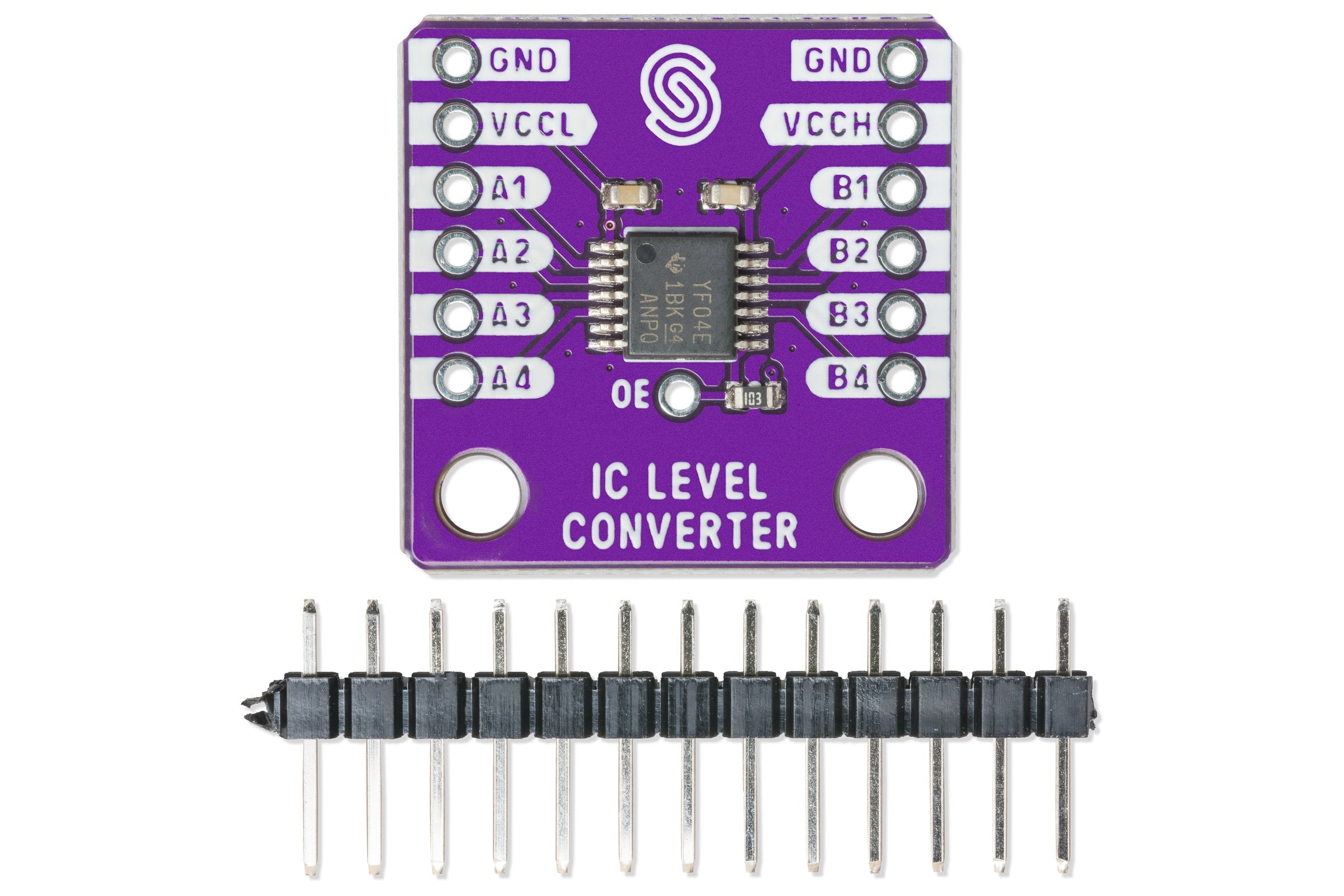

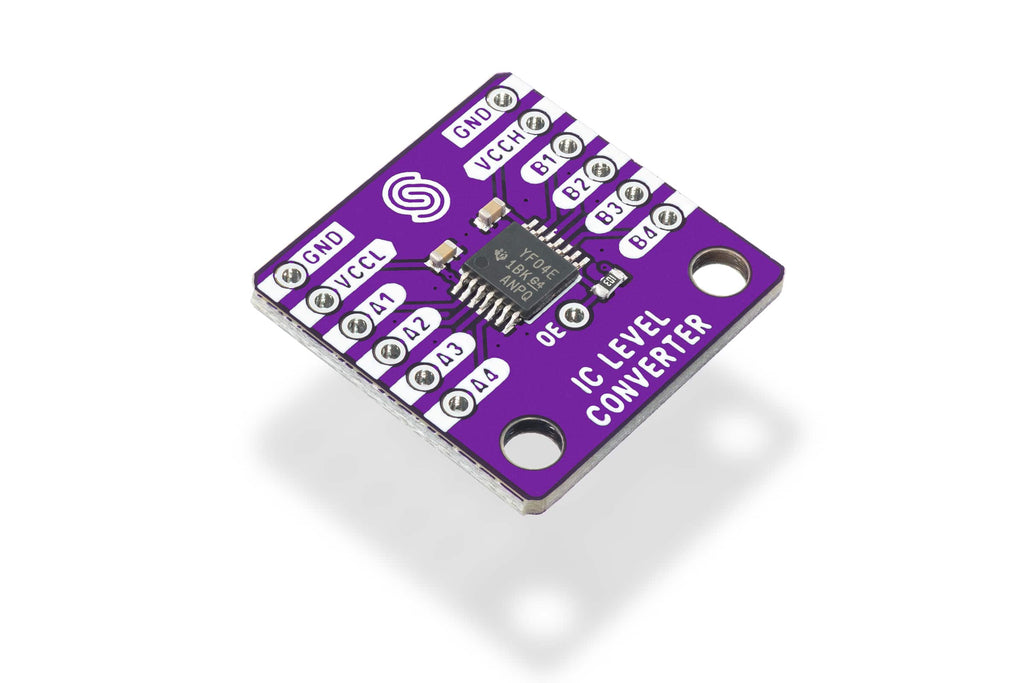

Logic level converter I2C TXS0104 breakout
SKU: 333016
€2,50
63 items available

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

This small and simple module gives us a translation of logic level between two signals. In layman's terms, if we take a signal with logical "unit" on 5V convert into a signal which logical "unit" has on 3.3V this module will help us. Something like this is useful in this case if we want to achieve communication between two devices from whom one works on 5V and the other on 3.3V, or any other combination of voltages. Directly connecting we would "burn" a device that works on 3.3V and a module gives us to avoid that.



This board is specialized for signal conversion for I2C communication protocol, and for this conversion it uses a special integrated circuit that enables communication at high speeds.
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Max. voltage: 30V
  • Number of channels: 4
  • Communication protocol: I2C
  • Dimensions: 22 x 22 mm / 0.9 x 0.9 inch

Resources & Documentation

DEVELOPMENT & RESOURCES

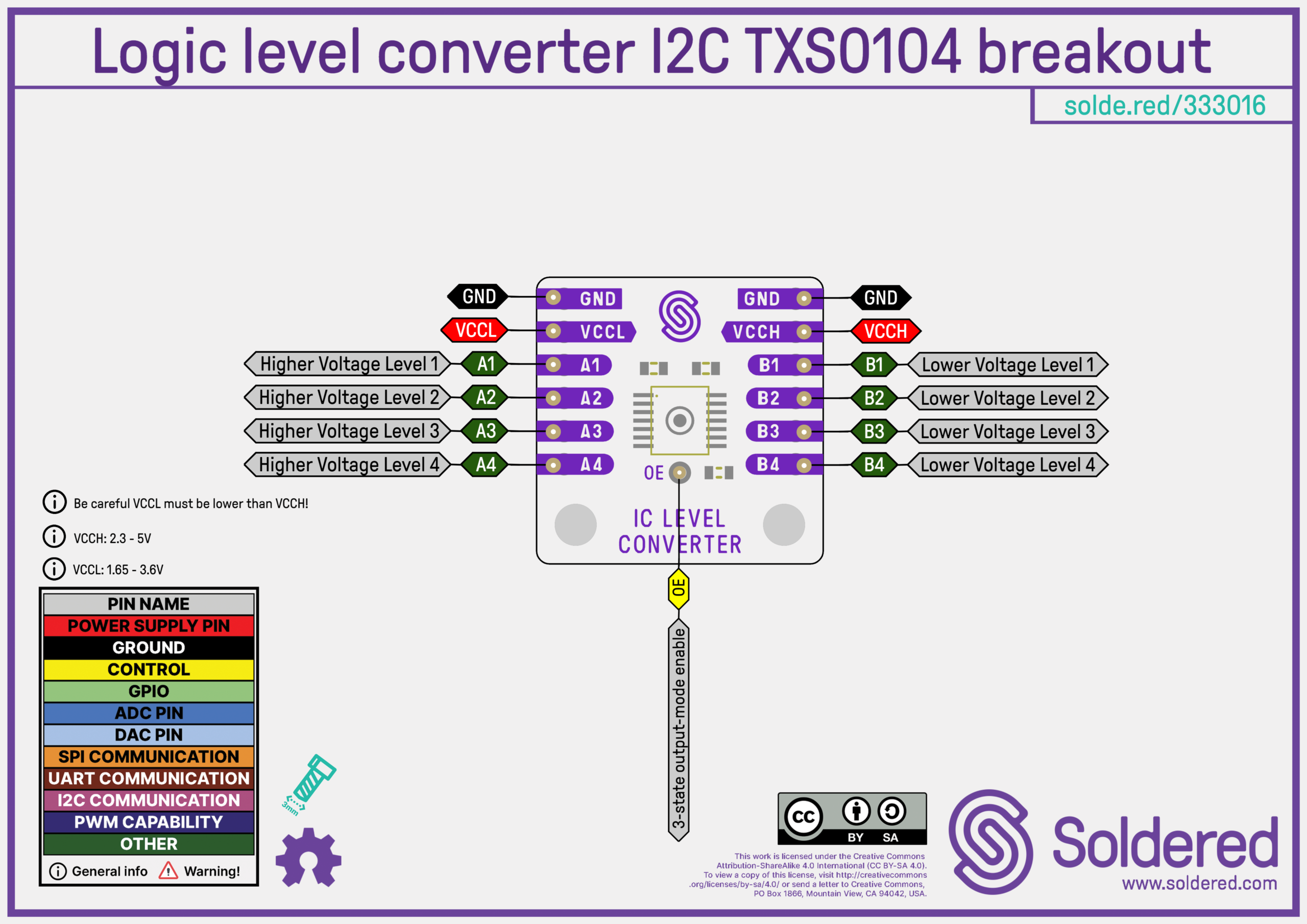

OPEN SOURCE HARDWARE FILES PINOUT DRAWING PRODUCT DATASHEET HARDWARE DETAILS
CERTIFICATES & COMPLIANCE
CE CERTIFICATE UKCA CERTIFICATE
DOCUMENTATION & TUTORIALS
FULL PRODUCT DOCUMENTATION
