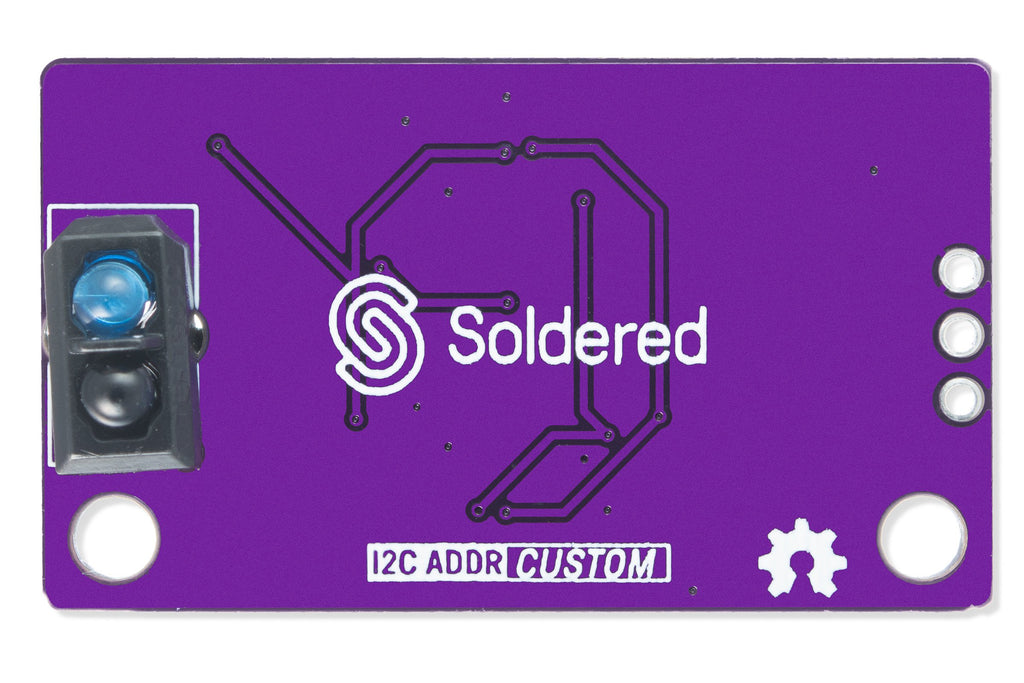

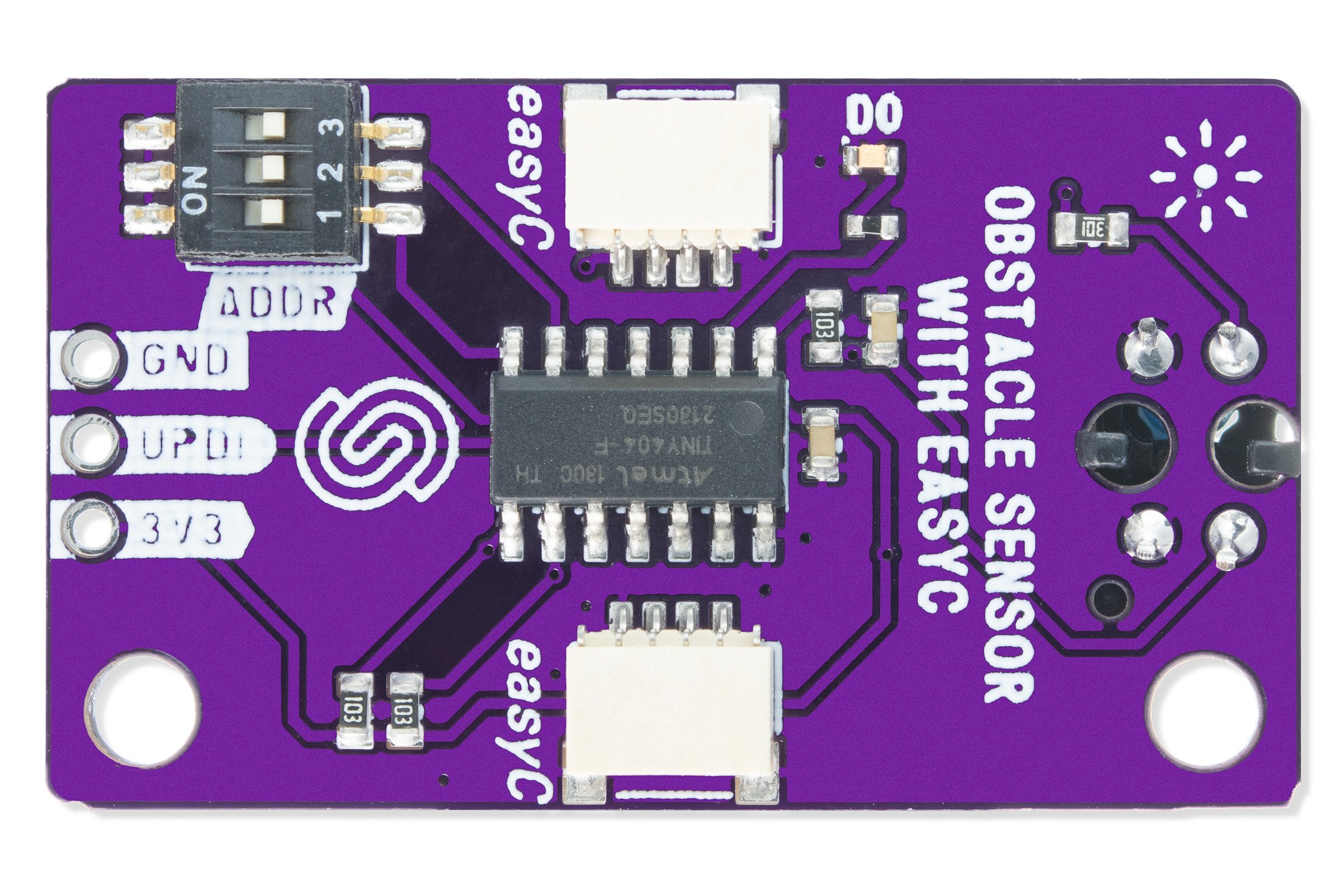

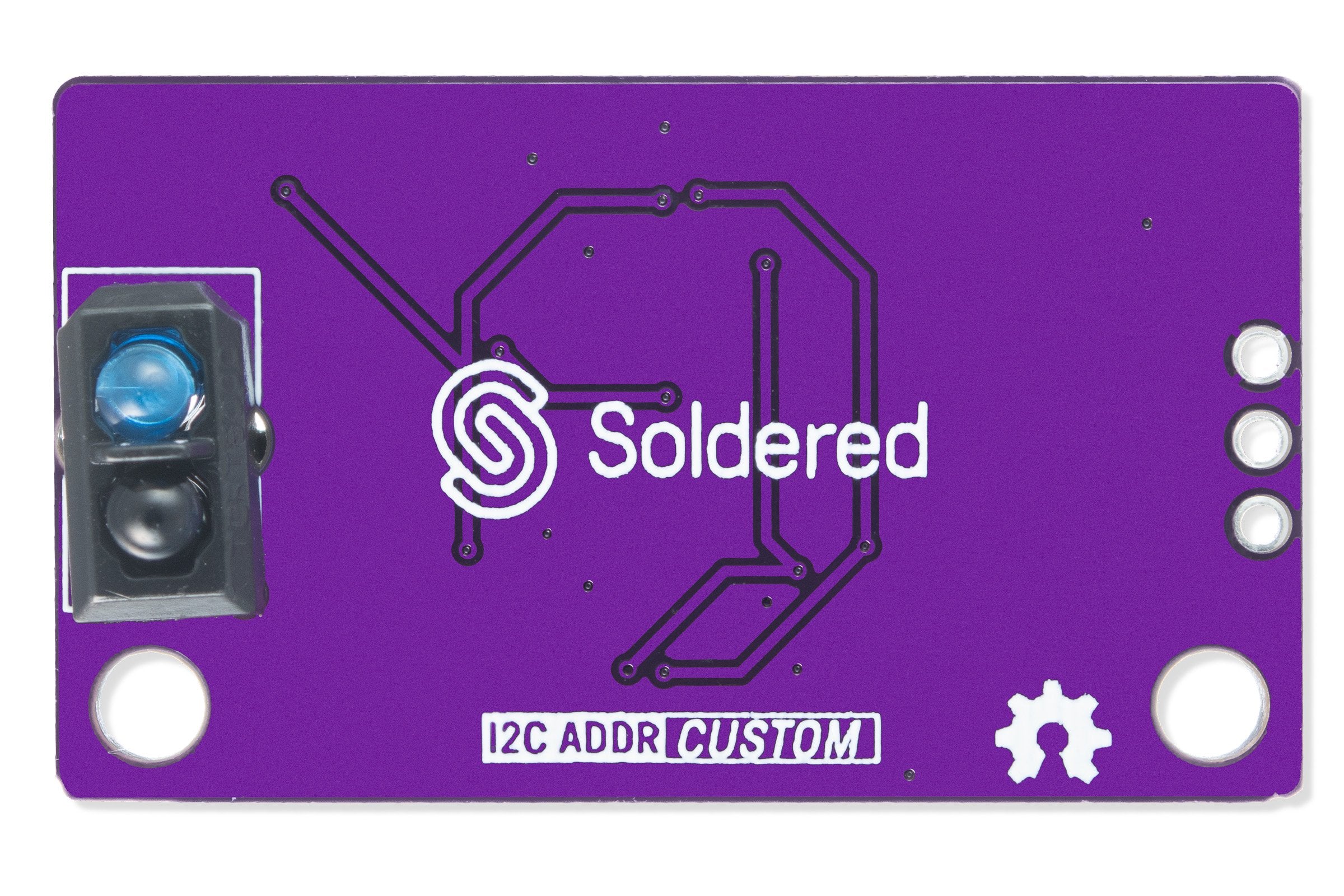

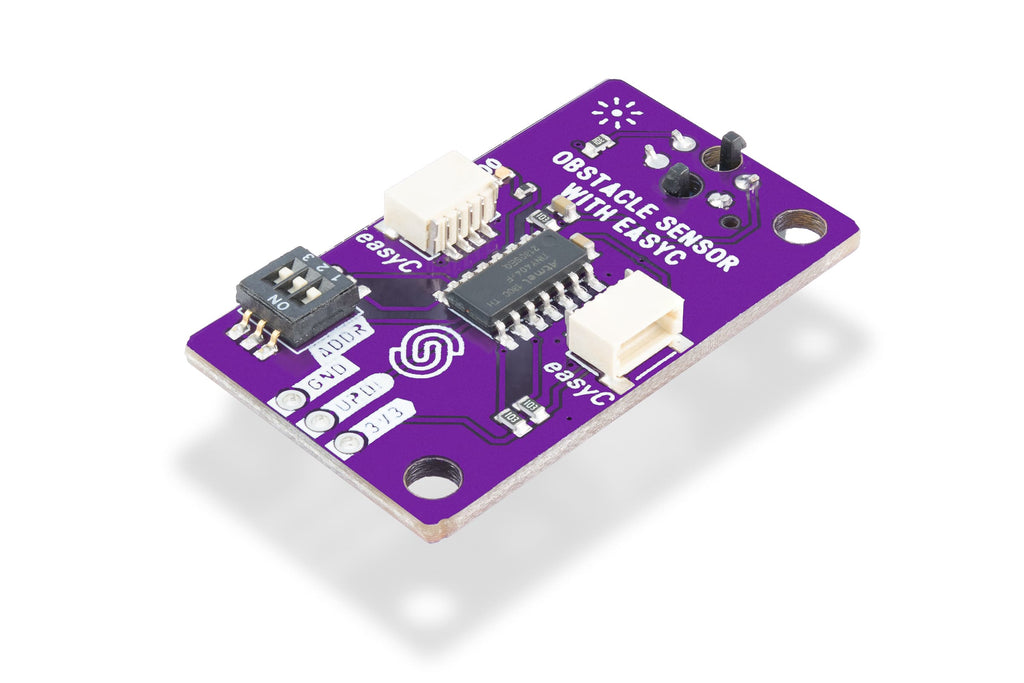

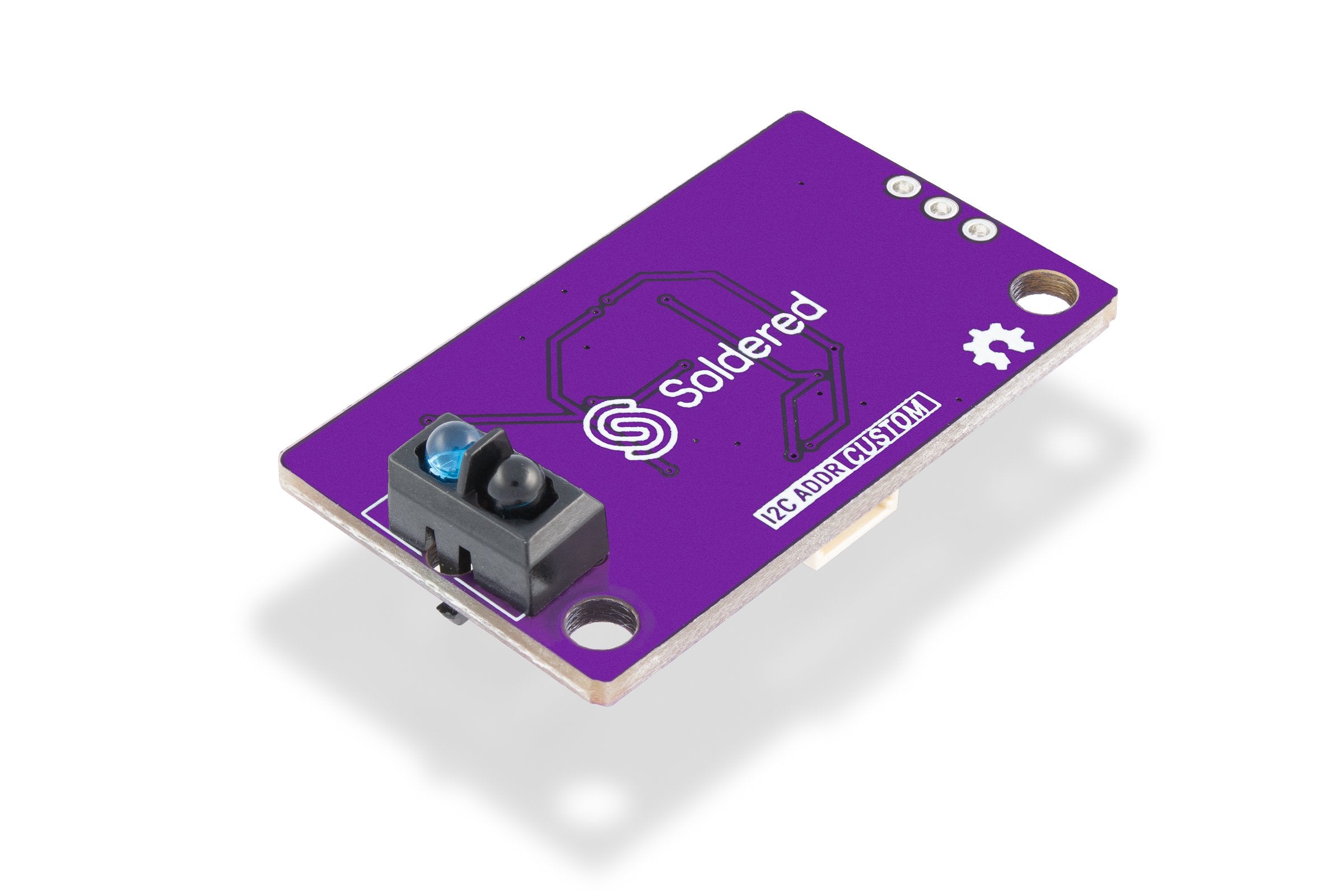

Obstacle sensor with Qwiic
SKU: 333004
€3,95
5 items available

Add-Ons

24/7 lifetime customer and technical support

2-year Warranty -no questions asked

Comprehensive Documentation

Open-source everything

Description

The TCRT5000 is an infrared (IR) reflective sensor module that is commonly used for proximity sensing and line-following applications. It consists of an infrared emitter and a phototransistor placed side by side in a compact package. The emitter emits infrared light, which gets reflected off nearby objects, and the phototransistor detects the intensity of the reflected light. This sensor module is widely used in robotics and automation projects. It can be used to detect the presence or absence of objects by measuring the intensity of reflected infrared light. It is also commonly employed in line-following robots where it can detect and follow lines marked with contrasting colors. The TCRT5000 operates on a supply voltage typically ranging from 3.3V to 5V. The breakout board provides digital and analog information through the Qwiic system. Sensor readings are obtained through Qwiic.   Product usage tips:   Two mounting holes enable easy mounting to surfaces.
Complimentary technical support

In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source

Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Qwiic

Our Qwiic ecosystem provides plug‑and‑play connectors for solderless connections, enabling you to add sensors and modules without wiring errors. Get up and running in seconds, whether you’re a beginner or a professional. Full documentation is available on our Qwiic page so you can explore all features and supported modules.
Made in EU

Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.

Technical Specifications

  • Sensor: TCRT5000
  • IC: ATTiny404
  • Qwiic connectors
  • Dimensions: 38 x 22 mm / 1.5 x 0.9 inch

Resources & Documentation

DOCUMENTATION & TUTORIALS
FULL PRODUCT DOCUMENTATION GETTING STARTED WITH ARDUINO
DEVELOPMENT & RESOURCES

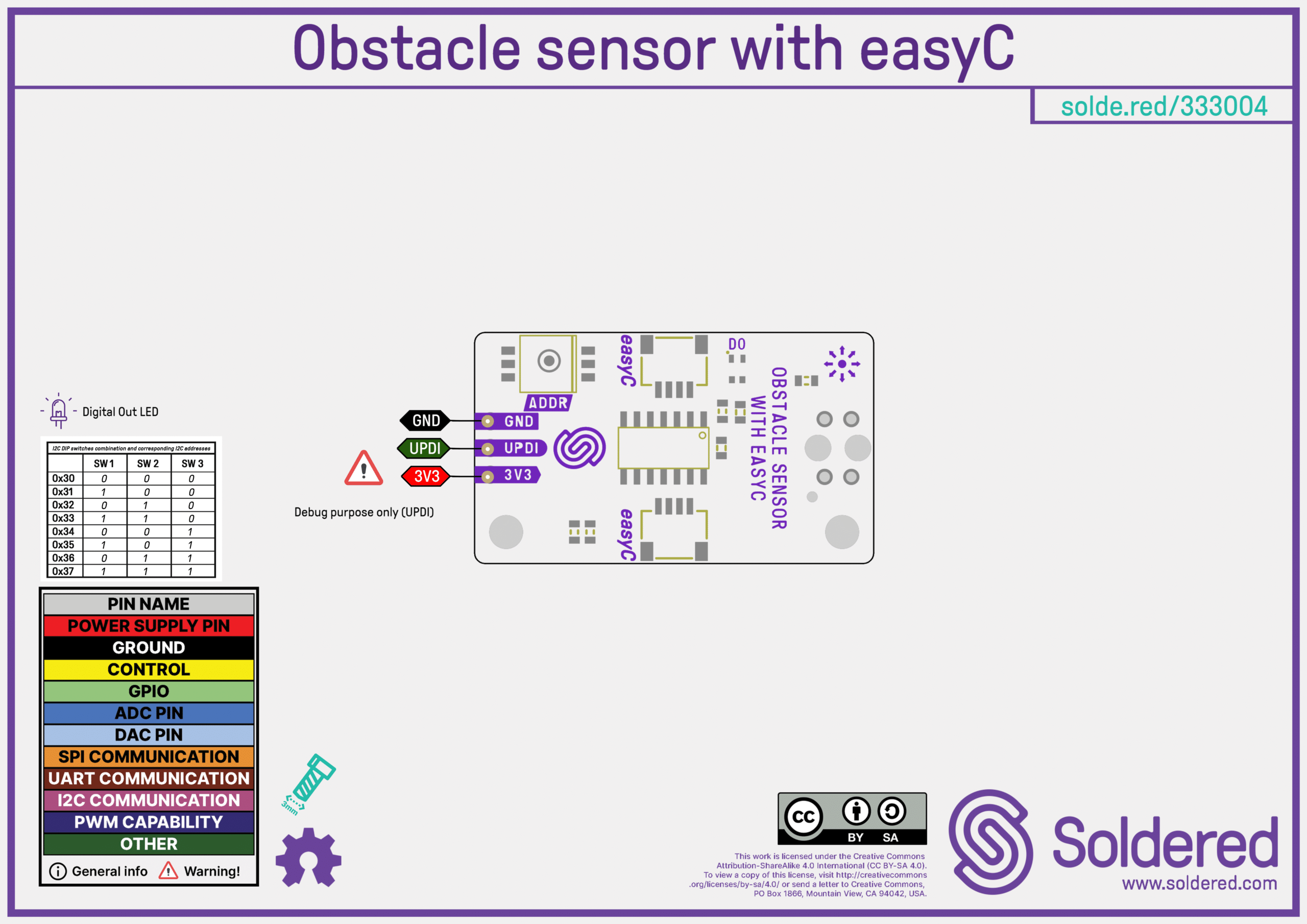

PINOUT DRAWING OPEN SOURCE HARDWARE FILES PRODUCT DATASHEET ARDUINO LIBRARY ARDUINO LIBRARY DOCUMENTATION HARDWARE DETAILS
CERTIFICATES & COMPLIANCE
CE CERTIFICATE UKCA CERTIFICATE
