Description

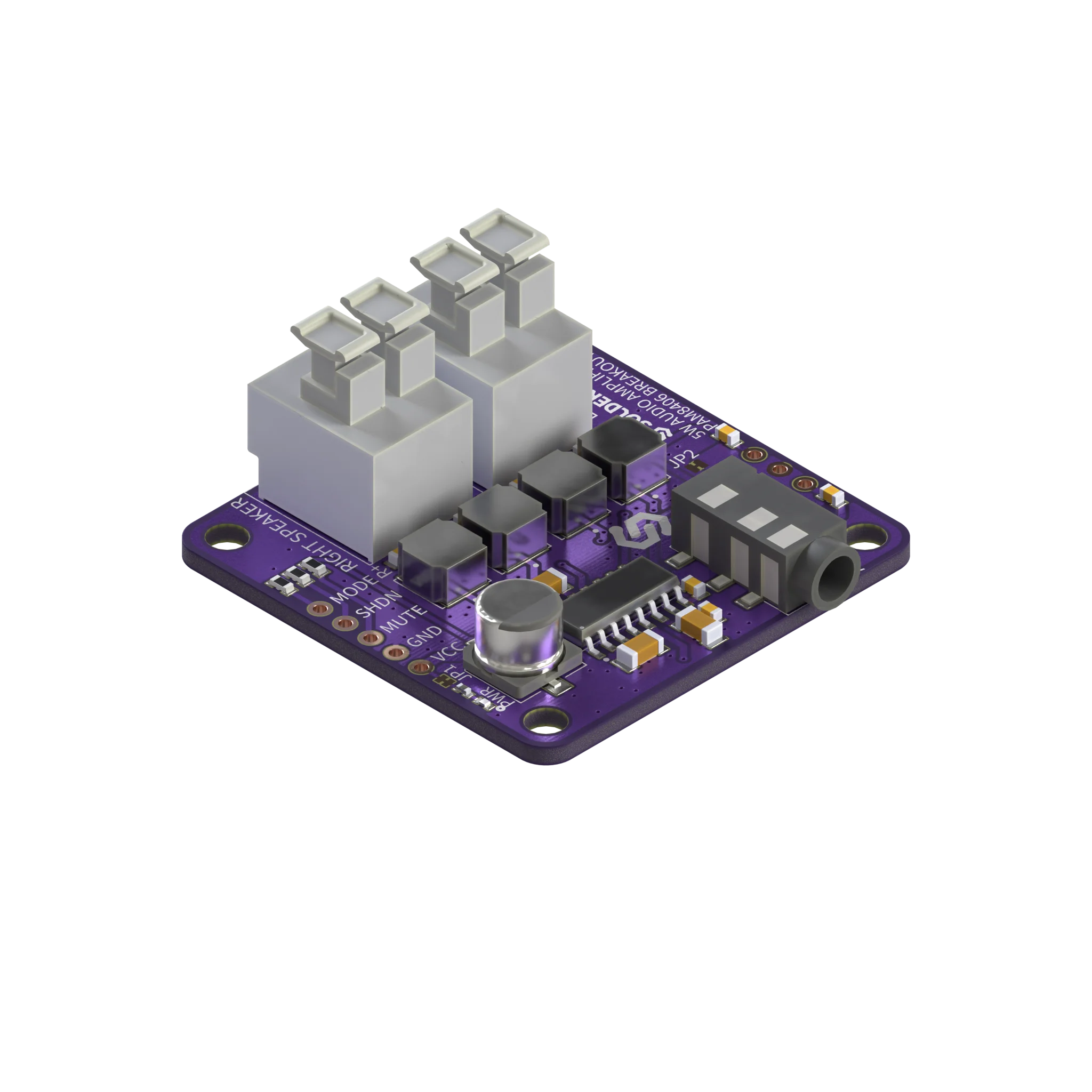

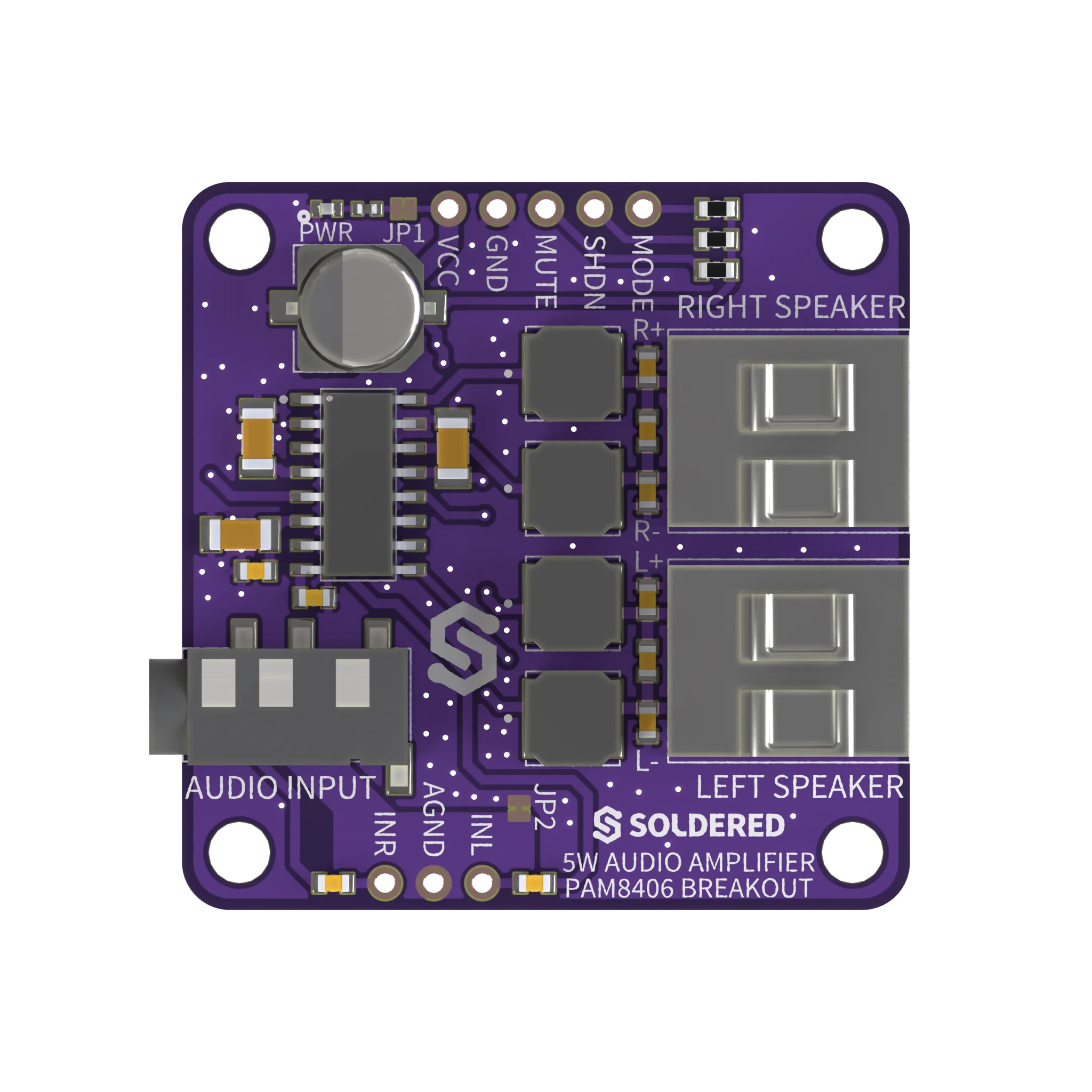

The Soldered 5W Audio Amplifier PAM8406 breakout is a compact stereo amplifier for driving a pair of speakers directly from a quiet line-level signal. It delivers up to 5 W per channel into a 2 Ω load, about 3 W into 4 Ω, or 1.8 W into 8 Ω, using only a 2.5-5.5 V supply. The board is built around the Diodes PAM8406, which can work as Class-D amplifier with up to 90% efficiency, good for battery-powered projects, or as a cleaner Class-AB amplifier. You choose the mode with a single MODE pin on the control header. Connect audio through the on-board 3.5 mm jack or the 3-pin input header, connect your left and right speakers to the two screw terminals, and you are ready to go. The board includes a full LC output filter to reduce EMI and support longer speaker leads, and MUTE and shutdown lines broken out next to power.. A simple and practical way to give your project a voice.
Technical Specifications
- IC (amplifier): PAM8406, stereo Class-D / Class-AB
- Output power (Class-D, 5 V, 10% THD): 5 W/ch @ 2 Ω · 3.14 W/ch @ 4 Ω · 1.8 W/ch @ 8 Ω
- Output power (5 V, 1% THD): 4 W @ 2 Ω · 2.55 W @ 4 Ω · 1.6 W @ 8 Ω
- Mode: Class-D or Class-AB, selectable via MODE pin (defaults to Class-D, 10 kΩ pull-up)
- Efficiency: up to 90% (Class-D, 8 Ω, 1 kHz)
- Audio input: 3.5 mm stereo jack + 3-pin header (INL, GND, INR)

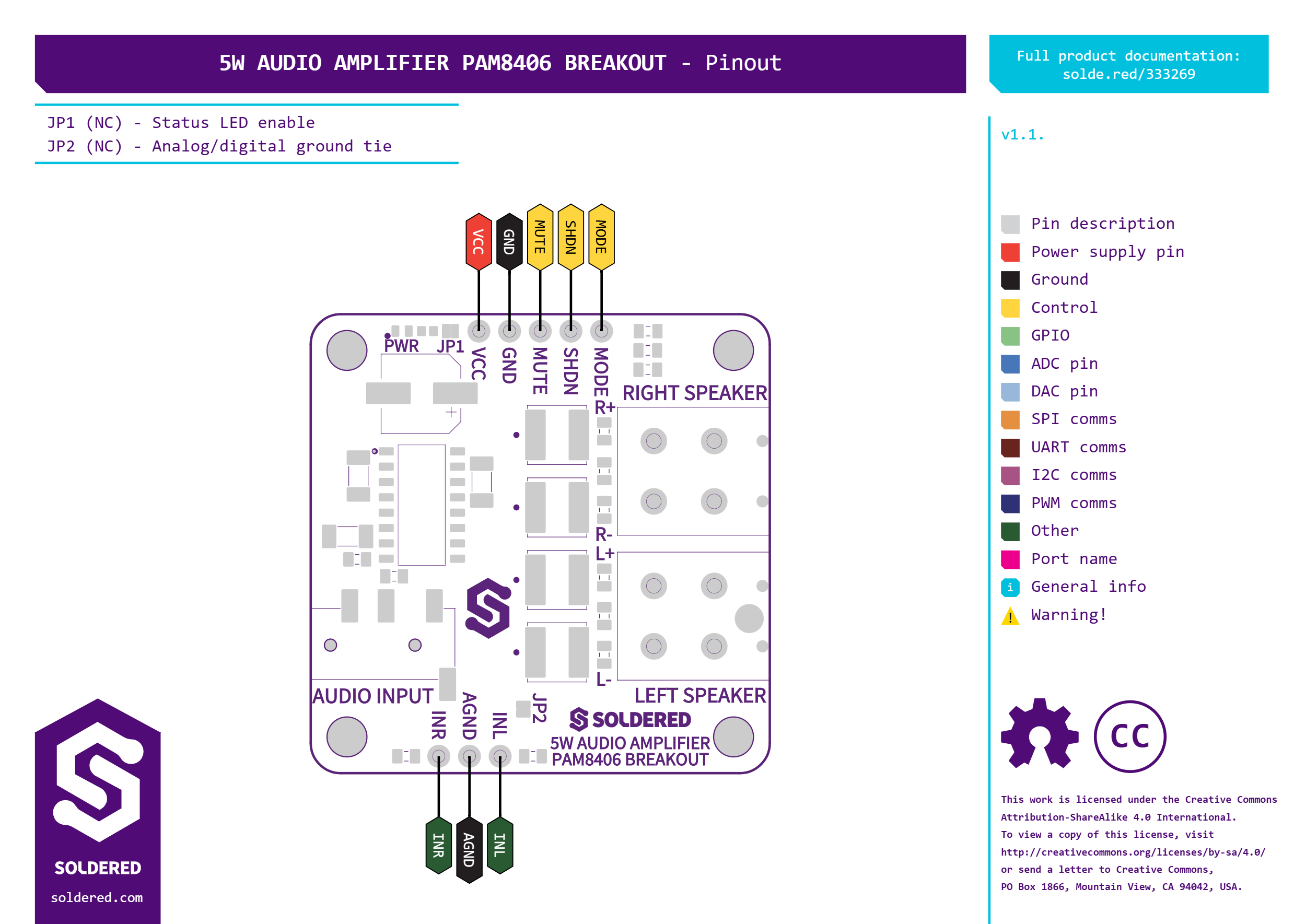

- Control / power header: 5-pin - MODE, SHDN, MUTE, GND, VCC
- Speaker outputs: 2 x 2-pin 5.0 mm screw terminal (KF235-5.0) - left and right
- Supply voltage: 2.5-5.5 V (abs. max 6.0 V)
- Switching frequency (Class-D): 250 kHz
- Protection: short-circuit (auto-recovery), thermal shutdown, UVLO (~2.0 V)
- Pop suppression: no pop at turn-on / turn-off
- IC operating temperature: -40 °C to +85 °C
- Board size: 38 x 38 mm
- Mounting: 4 x 3.2 mm holes (M3)
