Product Description
Measure extreme temperatures from -25°C to +400°C with precision using our AD8495 K-Type thermocouple sensor breakout. Perfect for industrial monitoring, 3D printer hotends, furnace control, and high-temperature research applications, this sensor provides accurate temperature readings where standard sensors fail. The built-in cold junction compensation (CJC) eliminates the need for external reference temperature measurement, while the linear 5mV/°C output makes integration with Arduino and other microcontrollers straightforward and reliable.

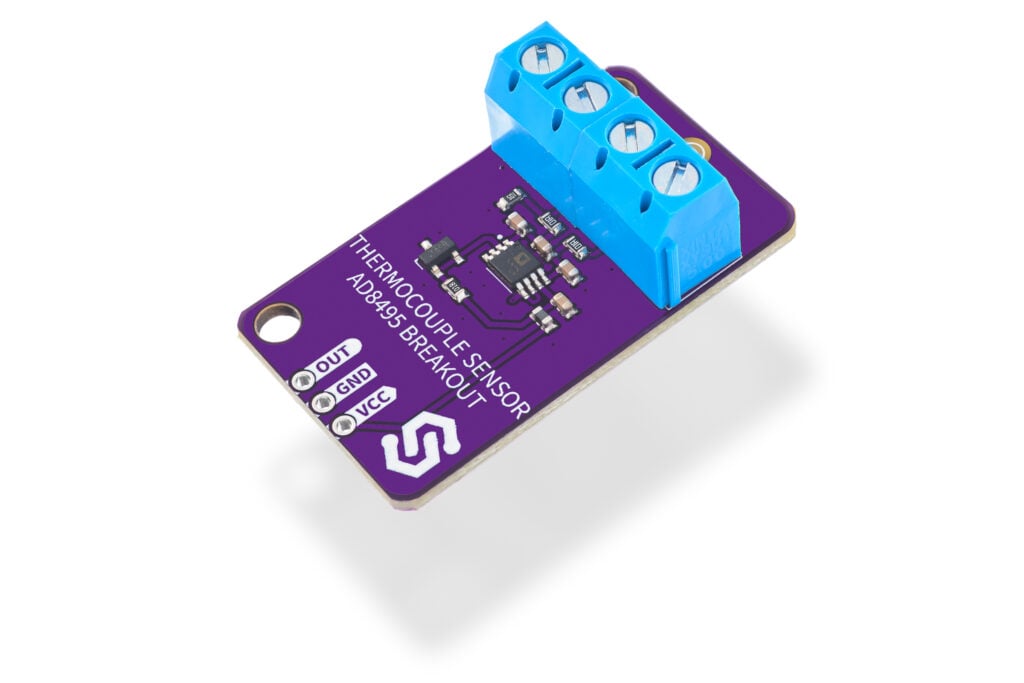

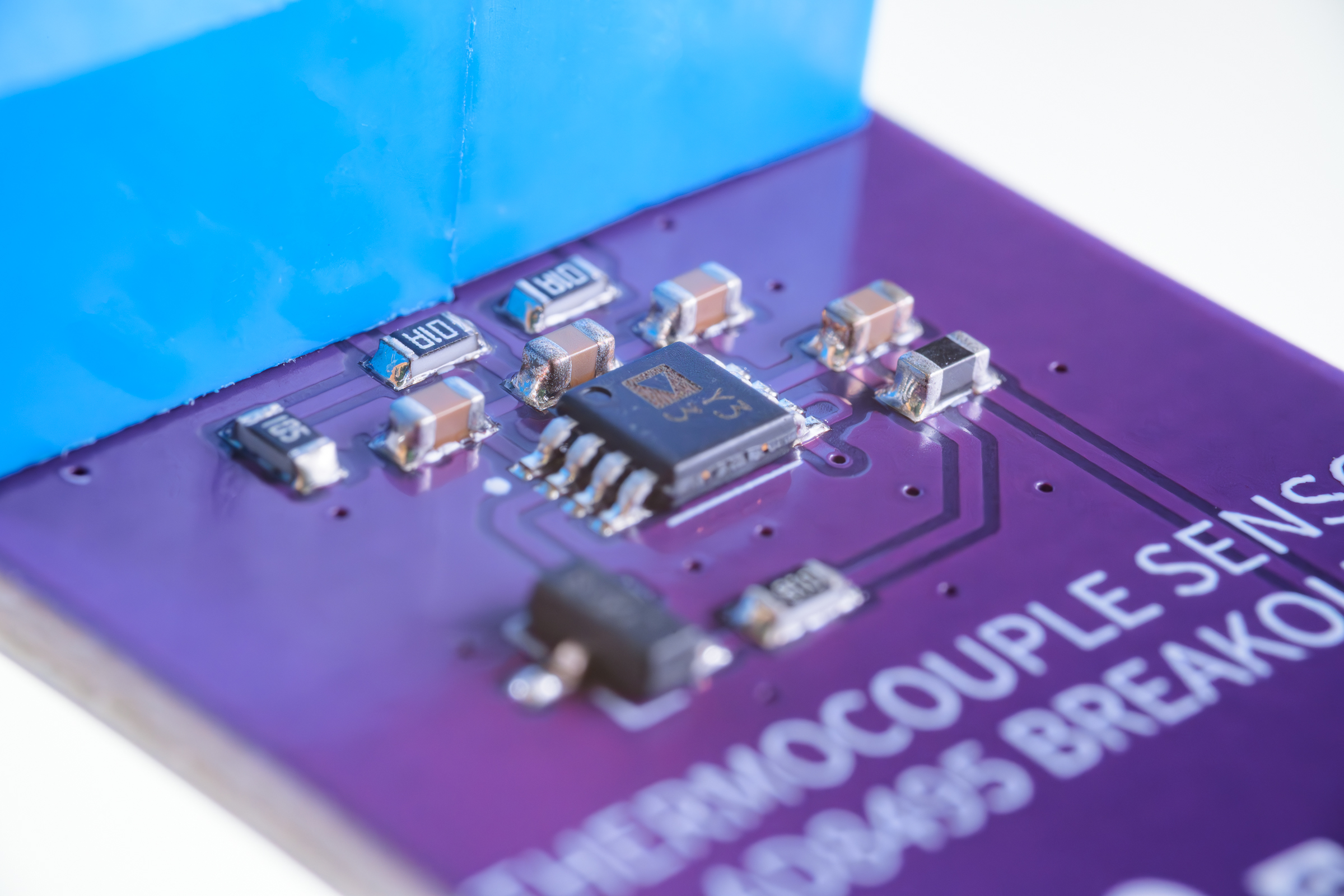

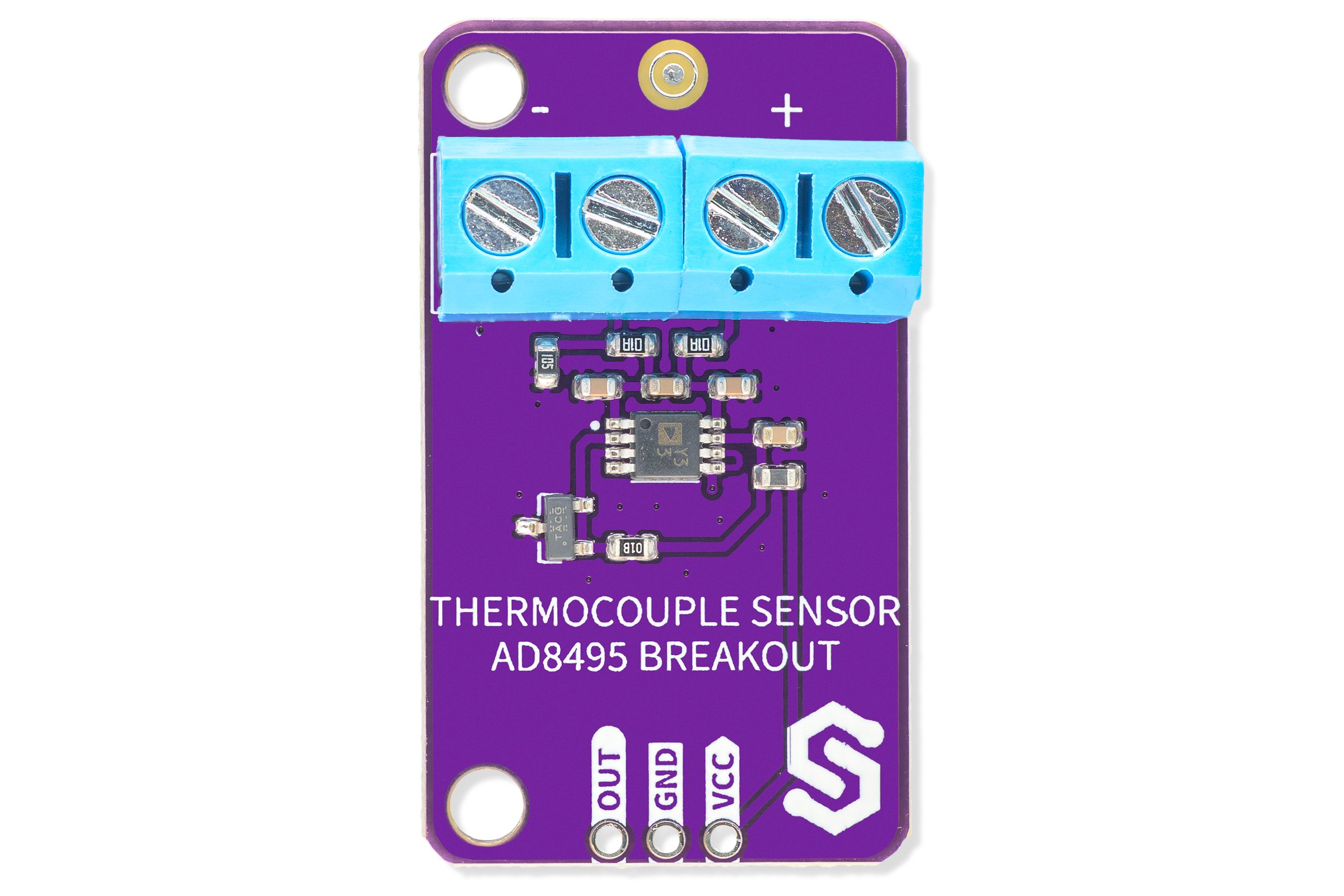

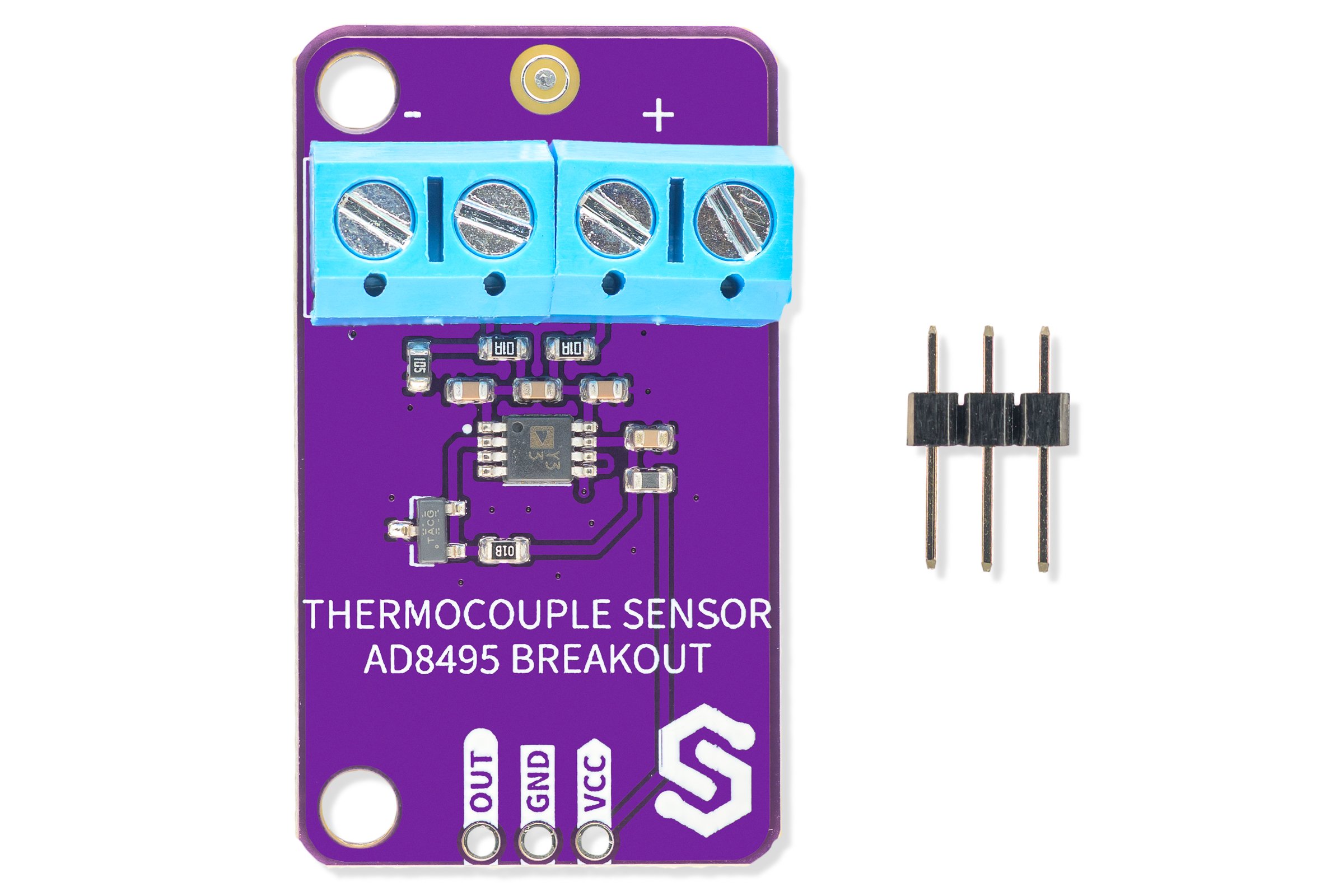

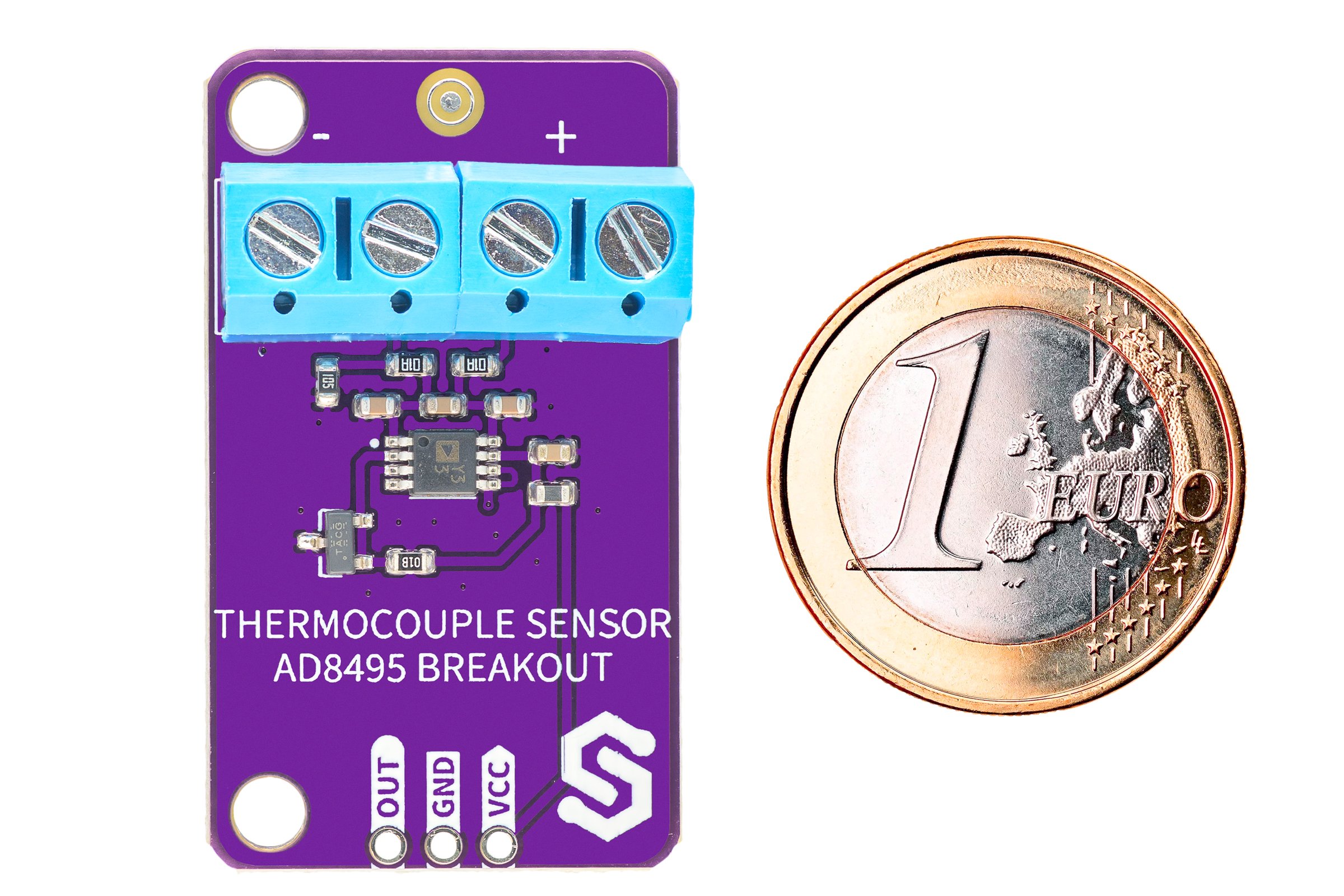

Engineered around the precision AD8495 chip, this breakout board features built-in cold junction compensation with ±1°C typical accuracy within 0-50°C ambient range. The wide supply voltage range (2.7V to 36V single supply, or 2.7V to 18V dual supply) ensures compatibility with various power systems, while the ultra-low 180µA typical supply current makes it perfect for battery-powered applications. The 1.25V typical output at 0°C provides a stable reference point for accurate temperature calculations.
Essential for monitoring 3D printer hotends, industrial furnace control, measuring exhaust gas temperature in automobiles, temperature monitoring in food processing, and scientific research requiring precision at high temperatures. Compatibility with K-Type thermocouples and high accuracy make this sensor ideal for both hobby projects and industrial automation systems where reliable measurement is crucial.
Product features
Complimentary technical support
In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
Open-source
Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Made in EU
Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.
Key features
- Temperature Range: -25°C to +400°C with K-Type thermocouple
- Output: Linear 5mV/°C for easy microcontroller integration
- Reference Output: 1.25V typical at 0°C (cold junction)
- Accuracy: ±1°C typical, ±2°C max (0-50°C ambient range)
- Built-in CJC: Automatic cold junction compensation
- Stable Operation: Consistent readings across temperature ranges
- Supply Voltage: 2.7V to 36V (single supply) / 2.7V to 18V (dual supply)
- Supply Current: Ultra-low 180µA typical consumption
- Output Type: Analog voltage proportional to temperature
